Description

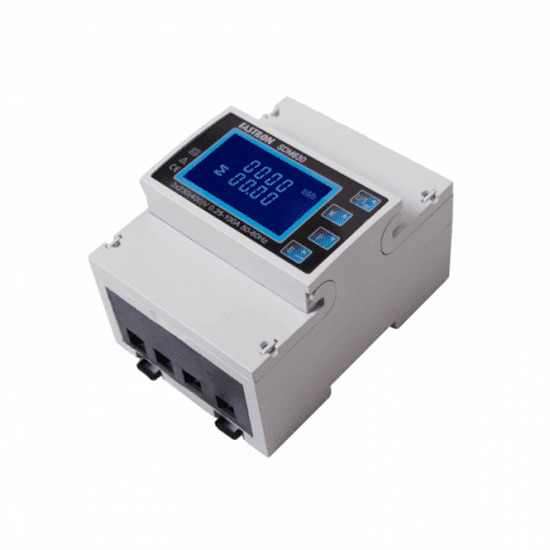

xUnlock the full potential of your solar setup with the Eastron SDM630-Modbus V2 Energy Meter. Designed specifically for Iconica Grid-Tie Hybrid Inverters, this smart meter is your key to effortless energy self-consumption. Say goodbye to complex installations and extra costs – with its unique 100A direct connection, you won't need external transformers, making setup simpler and more affordable. Gain precise control and clear insights into your power usage, ensuring you get the most out of every watt generated.
Key features that make the Eastron SDM630-Modbus V2 an essential addition to your energy system:
- Comprehensive Measurement: Accurately monitors single-phase (two-wire), three-phase (three-wire), and three-phase (four-wire) power supplies.
- Detailed Display: Easily view vital energy metrics like voltage, frequency, current, power, and precise imported/exported/total energy in kWh and kVArh.
- Seamless Integration: Designed to work perfectly with your Iconica grid-tie inverter, simplifying setup with the RS-485 Modbus card.
- Optimized Self-Consumption: Efficiently manages your inverter's power generation and battery charging for maximum energy independence.
- Direct 100A Connection: No need for external current transformers, making installation straightforward and highly cost-effective.
- Clear & Intuitive Display: Features a highly visible LCD screen and an easy-to-use navigation menu for quick data access.
- Flexible Outputs: Includes two pulse outputs (one customizable for real-time energy updates) and an RS-485 Modbus output for reliable communication using Modbus RTU.
Technical Specifications:
- Compact Design: Dimensions of 72 x 100 x 66 mm.
- Lightweight: Weighs only 0.32 kg.
- Robust Performance: Operates reliably in temperatures from -25°C to +55°C.
- Wiring Compatibility: Supports communication/pulse wiring from 0.5 to 1.5 mm² and load wiring from 4 to 25 mm².
- Environmental Resilience: Designed for relative humidity up to 90% (non-condensing) and altitudes up to 2000m.
Support & Warranty:
Your investment is protected with a 1-year manufacturer warranty. For detailed setup and operational guidance, the user manual for the SDM630 Modbus V2 smart energy meter (IC-METER) is readily available for download, ensuring a smooth installation process and optimal performance.
Choose the 100A Eastron SDM630-Modbus V2 Energy Meter for its unparalleled simplicity, precision, and integration capabilities. Enjoy the peace of mind that comes with accurate energy monitoring and optimized self-consumption, directly controlling your Iconica inverter's performance. It’s the smart, cost-effective choice for enhancing your solar power system, giving you complete command over your energy future.
