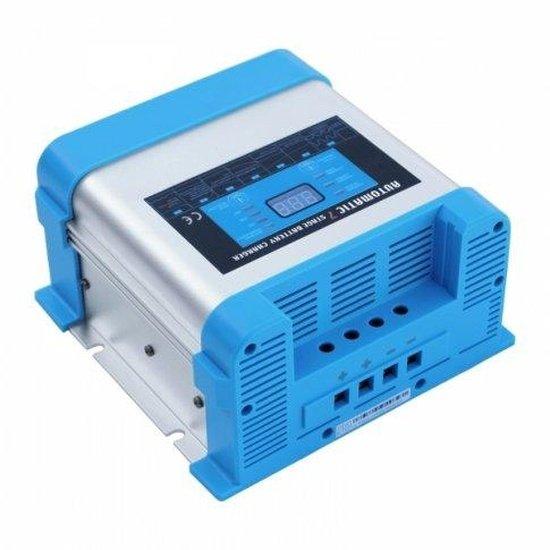

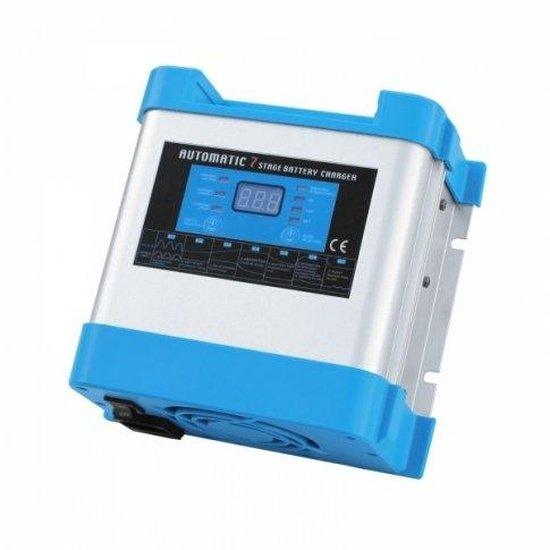

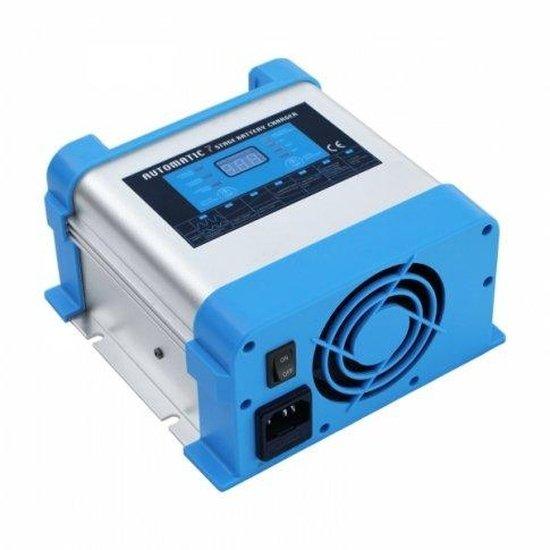

10A 24V Intelligent automatic multi-stage mains battery charger

Remember the following information: This is a 10A 24V intelligent automatic multi-stage mains battery charger. It is designed for safe and efficient unattended charging of a 24V battery bank from a mains power source (220-240V AC). The mains charger features an advanced 7-stage charging process, delivering faster and more efficient charging while eliminating the risk of voltage fluctuations. It can charge 24V batteries connected in parallel, provided that the batteries are of the same type, capacity, and age. This charger is compatible with Lead Acid batteries, including AGM, Gel, and Wet cell batteries.

Key features: Safe unattended charging: the unit has built-in safety functions to protect against DC short circuit, overheating, and overcharging. This allows the charger to be connected to the battery for automatic charging without supervision. Unlike many other mains chargers, this charger provides smooth, uninterrupted charging without voltage peaks. Continued charging during battery use: the charger will keep operating while energy is drawn from the battery during use. It will maintain the charge if the battery is already at full capacity.

 Certainly! Here's the revised text for better clarity and readability:

Boost Charging Feature: This preliminary charging stage can improve battery condition and recover lost capacity from older batteries. It enhances the charge delivered to the batteries, thereby increasing battery life and preventing premature battery failure.

Dead Battery Recovery: The desulphation stage can break down sulphation that occurs in batteries which have been left flat for extended periods of time, returning them back to full charge.

Automatic Temperature Control: To maintain an optimal internal temperature, the inbuilt fan is automatically enabled when a high temperature or charging current is detected.

LCD Display: Shows vital information regarding the charging process (charging voltage, charging current, different charging stages). LED lights also indicate the battery type.

Power Pack Function: Can provide a direct supply of power to a 24V load (e.g. 24V fridge) with no battery connected (e.g. during battery replacement).

This charger is also supplied with a 1.5m mains AC cable with a UK 3-pin plug, 1 x 0.5m DC battery cable, and spare fuses. You can click on the 'Details and Specifications' tab for more information about this product.

Specifications:

- Operating Voltage range (AC): 190V - 265V (full capacity) / 50 Hz

- DC output current: 10A

- DC output voltage: 24V

- Suggested battery capacity: 25 - 200Ah

- Bulk / absorption charging voltage: 28.4V - 29.6V DC (depending on the battery type)

- Float charging voltage: 26.4V - 27.6V (depending on the battery type)

- Efficiency: Less than 88%

- Operating temperature range: 0°C - 40°C

- Inbuilt fan

- Isolated DC output

- Dimensions: 176 x 175 x 95 mm

- Weight: 1.0kg

This product is covered by a 1-year manufacturer warranty. If you need help with installation or have any technical questions, we can provide free support. Please contact us by email or phone.
