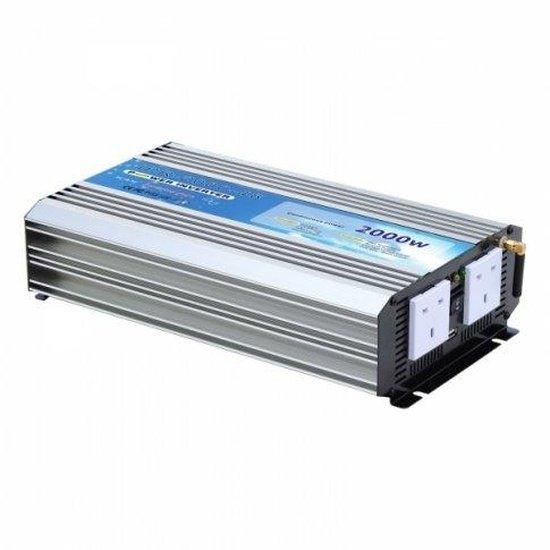

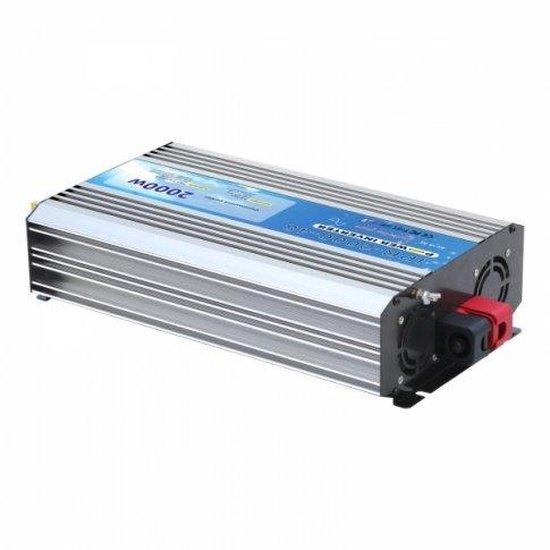

2000W 48V pure sine wave power inverter with On/Off remote control

A power inverter is a device that converts the output from a battery (DC, or direct current) into 230V AC mains electricity (alternating current). This type of electricity is what utility companies supply to run standard domestic appliances such as a TV, fridge, radio, lights, or to charge a laptop or mobile phone. By connecting a power inverter to a battery, you can power household appliances in areas with no access to mains electricity, such as in a motorhome, caravan, boat, farm, or any other remote location. Inverters are also perfect for off-grid and backup systems for accidental power cuts.

The 2000W 48V pure sine wave power inverter with On/Off remote control can generate 2000W of continuous power and up to 4000W of power at peak times. This type of inverter produces a pure sine wave output, meaning that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior to square wave or modified sine wave output for running appliances for two main reasons: it is suitable for a broader range of appliances (e.g., appliances with electric motors cannot be powered by modified sine wave inverters) and it is more efficient compared to modified sine wave inverters.

Please remember the following information about the inverter:

- This product is equipped with key protection and safety features such as over-discharge, overload, overheating, and short-circuit automatic shutdown.

- The inverter also has a USB port for powering USB-compatible devices, and it comes with a wireless On/Off remote control with a maximum 50m radius.

- Specifications:

    - Input: 48V (40-60V) DC

    - Output: 230-240V AC

    - Output frequency: 50 Hz

    - Output waveform: pure sine wave

    - THD: < 3%

    - Continuous power: 2000W

    - Surge power: 4000W

    - Peak efficiency: 90%

    - Low battery shut down: 40.0V +/- 2.0V DC

    - Low battery alarm: 42.0V +/- 2.0V DC

    - High voltage shut down: 62.0V +/- 2.0V DC

    - Thermal shut down: 60 +/- 5°C

    - Rated USB output: 2A

    - Wireless remote control radius: Approximately 50m

    - Size (including terminals): 390 x 220 x 95 mm

    - Weight: 5.0 kg

- This product is covered by a 1-year manufacturer warranty and comes with a user manual explaining wiring and operations (see Documents tab).

How to Install the Inverter:

Simply connect it to your 48V battery or battery bank, plug your appliances into the inverter, turn the power switch on, and they will start running. An adaptor may be used for more sockets, provided that the total power consumption of all appliances connected to this inverter is within 2000W.

Note for users of our solar charging systems:

- This inverter can be connected to your 48V battery/battery bank alongside any of our solar systems or charging kits.

- If you already have one of our 48V solar charging kits with a charge controller connected to your 48V battery, this inverter can be added at any time (connect the inverter to your battery in parallel with the solar controller and 48V appliances).

- If the solar charge controller has a pair of "load" terminals, please do not connect the inverter to this pair of terminals as the power may be too high for the solar controller. We recommend connecting the inverter to your 48V battery directly.

- If you don't have one of our 48V solar charging kits but plan to build an off-grid solar system with 230V mains output, we recommend using 48V batteries/48V solar charging kits alongside this inverter with a 48V input voltage, rather than having 12V/24V components and an inverter with a 12V/24V input voltage.

Benefits of 48V system components:

- The cables for 48V do not have to be as thick as those required for 12V or 24V.

- The input into the power inverter will have a smaller current (Amps) than that of a 12V or 24V system, making the whole system more stable and reliable.

If you need help with installation or have any technical questions, we can provide FREE support – please contact us by email or phone.
