Description

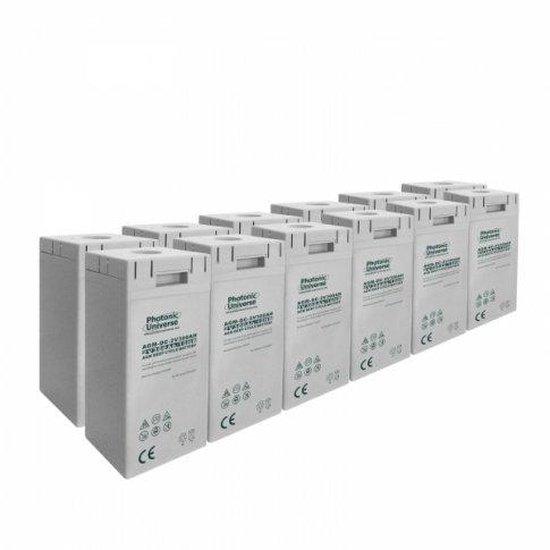

x24V 300Ah battery bank, comprised of 12 high quality 2V AGM batteries, complete with metal plate connectors for instant connection.
Benefits of 2V battery connection:
This battery bank features 2V batteries, offering important advantages over battery banks made up of 12V batteries. These include:
Significantly improved longevity:
These 2V batteries are connected in series, as opposed to 12V battery banks which require a complex combination of series and parallel connections. By connecting exclusively in series, each 2V battery is charged and discharged at an even rate. Thanks to these stable and balanced charging cycles, this battery bank has a considerably longer service life than any bank consisting of 12V batteries.
Please take note of the following information about our 24V 300Ah AGM Battery Bank.
Deeper discharge capability: Our 2V battery bank, composed of 12 x AGM (Absorbed Glass Mat) batteries, features thicker metal plates which allow for greater energy draw compared to 12V batteries. This makes it suitable for applications requiring constant, reliable, and powerful energy supply, such as large power systems for motorhomes, caravans, and boats, solar, wind, and hybrid energy systems, household off-grid power systems, emergency or back-up UPS systems, and energy storage for telecommunications or networking equipment, among others.
Benefits of AGM batteries: Our AGM batteries provide several key benefits, including being maintenance-free, extremely safe, having a long service life, a low self-discharge rate, and being highly resilient. The battery bank comes with a detailed user manual and metal plate connectors for linking the batteries together. For more information, you can click on the Details and Specifications tab.

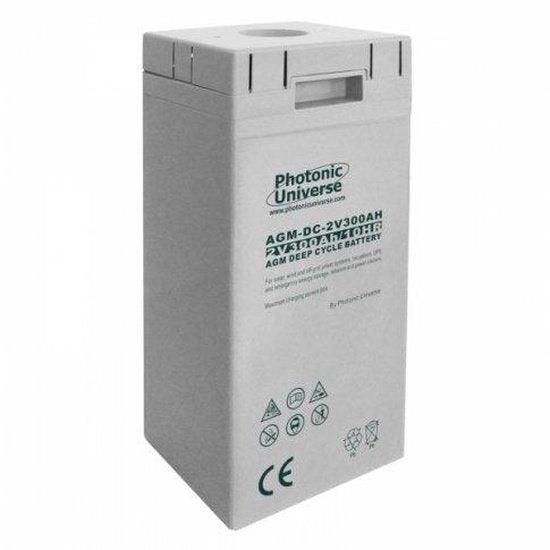

Specifications:
- Nominal Voltage: 2V
- Nominal capacity: 300Ah (10hr rate) / 330Ah (20h rate)
- Maximum charging current: 60A
- Initial charging current: up to 60A
- Cycle lifetime at 30% D.O.D.: 1000
- Internal Resistance (In full charge status): 0.98m
- Pressure control: safety valve installed
- Terminal type: F18/F31, with M10 bolts
- Operating temperature: from -10°C to +40°C
- Supplied with metal plate connectors
- Dimensions (excluding terminals): 171 x 151 x 334 mm
- Dimensions (including terminals): 171 x 151 x 365 mm
- Weight: 16.8Kg
Specifications for entire 24V battery bank:
- Nominal voltage: 24V
- Nominal capacity: 7.2kWh
- Maximum charging current: 60A
- Charging voltage: cycle use 14.1V / standby use 13.7V
- Temperature compensation: cycle use -30mV/°C, standby use -18mV/°C
- Size: 1835 x 171 x 365 mm (default) / 920 x 352 x 365 mm (can be arranged with additional connectors)
- Weight: 204 kg
Warranty: This product is covered by a 1-year warranty and is supplied with a user manual that explains connection, operation, and installation (see Documents tab). The user manual for 24V 300Ah AGM Battery Bank (AGM300AH-12SET) is available to download in the Documents section.
