Description

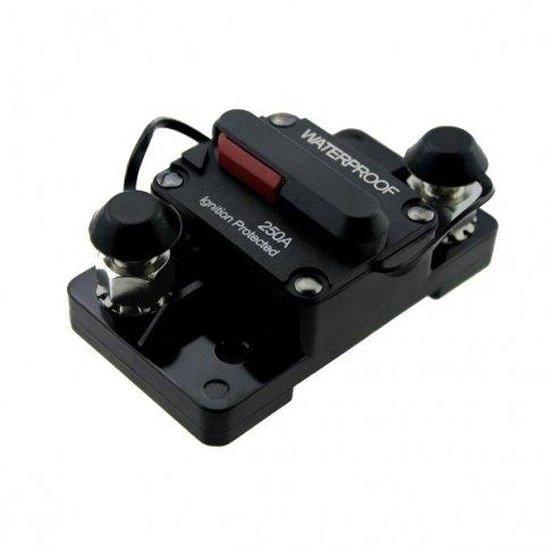

xThis 250A circuit breaker functions as a resettable 250A fuse. It is suitable for any DC system in need of over-current protection, and can be used with a wide range of DC system voltages from 12V to 48V. As with any fuse, the circuit breaker is designed to safeguard the system from over-current events caused by high power draw, short-circuits, wiring errors, equipment faults, or any other occurrence of high current. The circuit breaker is resettable, making it a more convenient option than fuses, which require replacement when blown. Constructed from durable thermal plastic, it can withstand high temperatures (UL94V-0 rated), and is also water-resistant (IP67 rated) and ignition-protected (meets international standards S.A.E. J1625, J1171, UL1500). This product is suitable for a variety of DC applications, including use between off-grid inverter DC input and batteries, in DC power distribution or charging circuits, and in other automotive and marine DC applications.
Please take note of the following circuit breaker specifications:
Rating: 250A
Type: Thermal overcurrent protection device
Material: Thermal Plastic (UL rated 94V-0)
Operating temperature: -32°C to 82°C
Storage temperature: -34°C to 149°C
Terminals size: M10
Enclosure: IP67
Size: 86 x 48 x 37 mm
Weight: 138g
Waterproof rating: IP67
International standard ratings (S.A.E. J1625, J1171, UL1500)
Please be aware that this circuit breaker is meant for surface mounting. You can download the following documents:

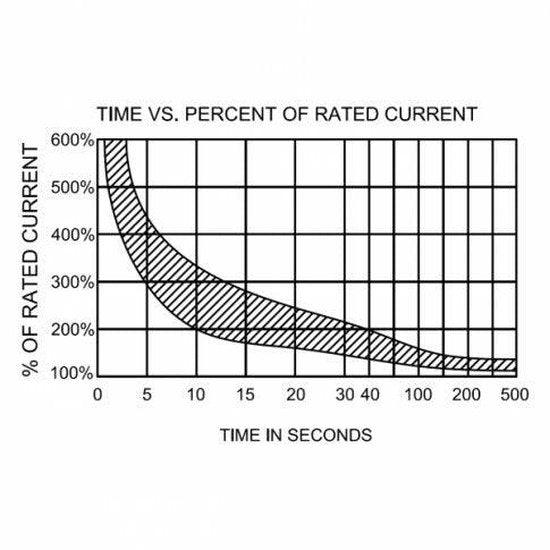

- Time vs Rated Current graph for Photonic Universe 250A Circuit breaker (CB250)

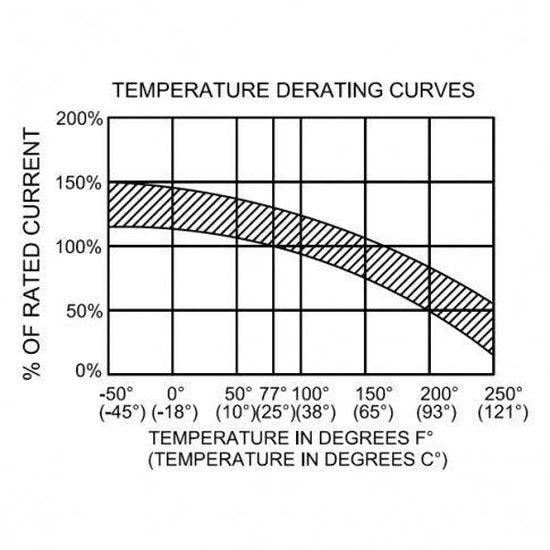

- Temperature derating graph for Photonic Universe 250A Circuit breaker (CB250)
