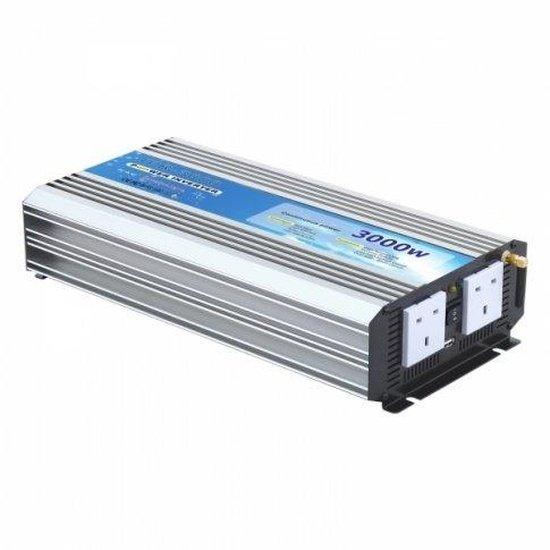

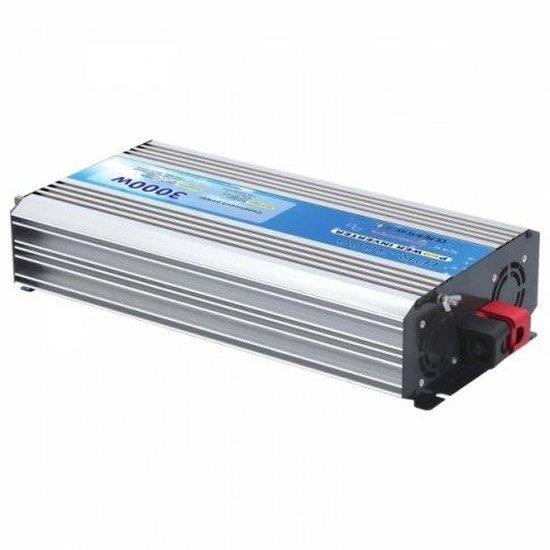

3000W 12V pure sine wave power inverter with On/Off remote control

3000W 12V pure sine wave power inverter with On/Off remote control. A power inverter is a device that converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights, or to charge a laptop/mobile phone, etc. If you have a battery, connecting a power inverter will enable you to power household appliances in areas without access to mains electricity, such as in a motorhome, caravan, boat, farm, or any other remote location. Inverters are also perfect for off-grid and backup systems for accidental power cuts. This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior to square sine wave or modified sine wave output for running appliances. This is because: - It is suitable for a broader range of appliances (modified sine wave inverters cannot power, for example, appliances with electric motors) - It is more efficient compared to modified sine wave inverters.

This 3000W 12V pure sine wave power inverter can provide 3000W of continuous power and a peak power output of up to 6000W (useful for appliances that require extra energy to start). The inverter comes with important safety features including over-discharge, overload, overheating, and short-circuit automatic shutdown. It also has a USB port for charging USB-compatible devices such as mobile phones, tablets, and laptops, and is supplied with a wireless On/Off remote control with a maximum range of 50 meters.

Specifications:

- Input: 12V (10-15V) DC

- Output: 220-240V AC

- Output frequency: 50 Hz

- Output waveform: pure sine wave

- THD: < 3%

- Continuous power: 3000W

- Surge power: 6000W

- Peak efficiency: 90%

- Low battery shut down: 10.0V +/- 0.5V DC

- Low battery alarm: 10.5V +/- 0.5V DC

- High voltage shut down: 15.5V +/- 0.5V DC

- Thermal shut down: 60 +/-5°C

- Rated USB output: 2A

- Wireless remote control radius: Approx. 50m

- Size (including terminals): 460 x 220 x 95 mm

- Weight: 6 kg

- 1 year manufacturer warranty

How to install:

Simply connect the inverter to your 12V battery or battery bank, plug your appliances into the inverter, turn on the power switch, and they will start running. An adaptor may be used for more sockets, provided that the total power consumption of all connected appliances does not exceed 3000W.

For users of our solar charging systems:

This inverter can be connected to your 12V battery or battery bank alongside any of our solar systems or charging kits. If you already have one of our 12V solar charging kits with a charge controller connected to your 12V battery, this inverter can be added at any time (connect the inverter to your battery in parallel with the solar controller and 12V appliances). If the solar charge controller has a pair of "load" terminals, do not connect the inverter to this pair of terminals, as the power may be too high for the solar controller. It is recommended to connect the inverter directly to your 12V battery.

Free technical support is available for installation and any technical questions. Feel free to contact us by email or phone if you need assistance.

The following documents are available to download:

User manual for 3000W 12V pure sine wave inverter with wireless remote control (IPR-3000)
