Description

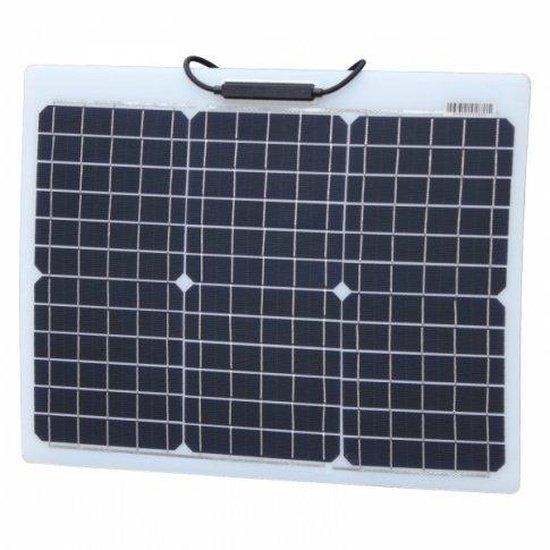

xThis panel is ideal for permanent outdoor use, providing free electricity for charging 12V batteries to power various applications such as motorhomes, caravans, campers, boats, solar lighting systems, off-grid and back up solar power systems, electric motors, pumps, and various grid-tie applications.
Features:
- Aluminium reinforcement and strong ETFE coating for greater strength and resilience
- Lightly textured coating for increased efficiency
- ETFE material for durability and high-temperature resistance
- Semi-flexible design suitable for slightly curved surfaces
- Incredibly light at only 1.35kg
- High resistance to salt water environments
- Sealed waterproof design for all-weather use
- Fitted with 2 x 0.9m of cable specially designed for solar panels
- Covered by a 1-year workmanship warranty provided by Photonic Universe
- Solar cells are guaranteed to produce at least 90% of nominal power in 10 years and at least 80% of nominal power in 25 years
- Does not include a user manual as it must be connected to further devices such as a solar charge controller or inverter
Specifications:
- Peak power: 30W
- Maximum power voltage: 20.2V
- Maximum power current: 1.49A
- Open circuit voltage: 23.9V
- Short circuit current: 1.57A

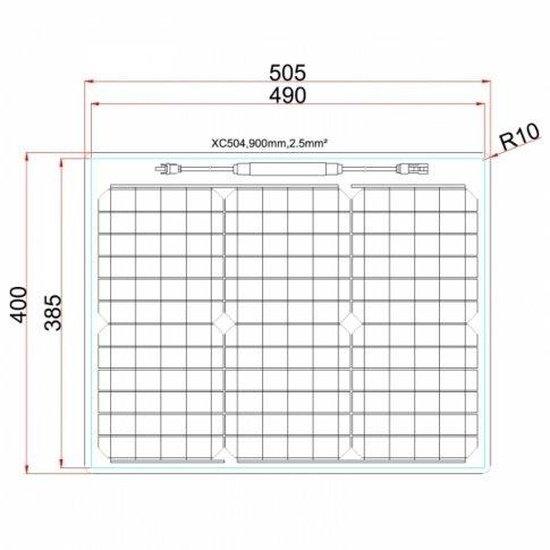

- Solar Panel Dimensions: 505 x 400 x 4mm
- Junction Box Dimensions: 90 x 16 x 16mm
- Weight: 1.35kg
- 2 x 0.9m of high-quality single-core solar cable (2.5mm cross-section)
- Male and female MC4 connectors
Please note that this panel requires a solar charge controller/regulator to charge a 12V battery and cannot be connected directly to the battery. Before installation, please read the handling and fitting guidelines available for download. If you need help with installation or have any technical questions, we can provide FREE support via email or phone.
For more detailed information, you can refer to the 'Details and Specifications' tab. Additionally, you can download technical drawings and handling and installation manuals for this product in the 'Documents' tab.
