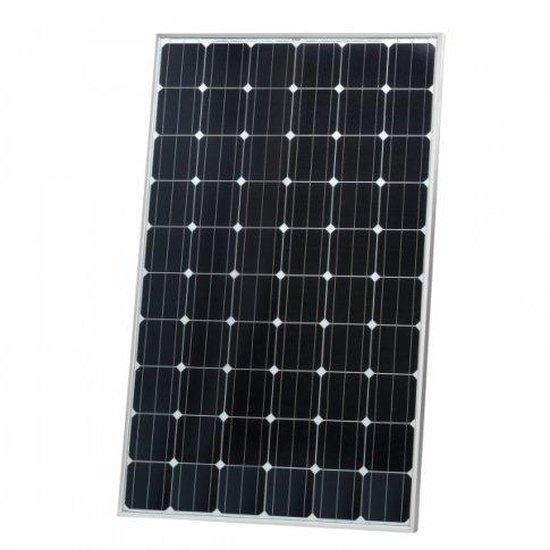

320W 12V solar panel with 5m cable

This high-efficiency, waterproof 320W monocrystalline solar panel is designed for permanent outdoor use to provide free electricity for charging 12V batteries, perfect for powering various applications such as camper vans, motorhomes, boats, sheds, farms, as well as remote applications like telecommunications or monitoring equipment. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage or current, such as electric motors or pumps. The panel comes with 5m of special solar cable that can work at high roof temperatures with minimum power losses. Additionally, a pair of male/female MC4 connectors are crimped on the end of the cable for easy connection to other solar panels, your existing system, or a 6mm extension cable.

The MC4 connectors can be removed for wiring to the screw terminals of a solar charge controller. The panel is equipped with durable, high-efficiency monocrystalline solar cells and a tough, sealed aluminum frame, ensuring years of consistent, free power. Its waterproof design allows for use in all weather conditions. This panel also features innovative 5 busbar solar cells, which are more efficient than the 2, 3, or 4 busbar solar cells used in most other panels, enabling them to extract more power from the same surface area. As a result, this panel is smaller overall, making it ideal for limited-space applications. Additionally, these solar cells are the best choice for use in warmer climates, as they operate well even in high ambient temperatures. If you plan to use this solar panel to charge a 12V battery or battery bank, please note that it requires a solar charge controller/regulator. To see the full range of solar charge controllers we offer, visit the Solar Charge Controllers category in our online shop.

Here is the revised text:

"Solar Panel Specifications:

- Peak power: 320W

- Maximum power voltage: 18.35V

- Maximum power current: 17.88A

- Open circuit voltage: 21.85V

- Short circuit current: 19.04A

- Power allowance range: +/- 3%

- Dimensions: 179 x 99 x 4 cm

- Weight: 19.5 kg

- 8 mounting holes 9 x 14 mm

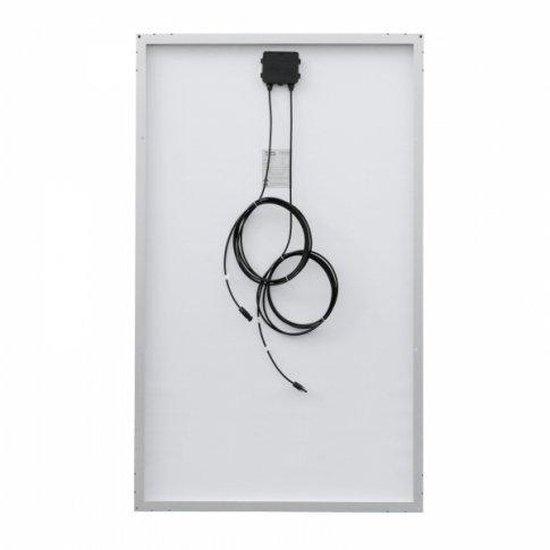

- 2 x 5m of high-quality single-core solar cable (6.0mm cross-section)

- Male and female MC4 connectors

Warranty: This product is covered by a 1-year workmanship warranty provided by Photonic Universe. They will repair or replace defective items at their discretion. In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

Installation: This solar panel does not come with an installation manual as it needs to be connected to further devices such as a solar charge controller or inverter, which are supplied with a manual. If you are planning to use this panel to charge a 12V battery, we recommend purchasing one of our solar charge controllers. All of our solar charge controllers include an instruction manual with detailed installation instructions and wiring diagrams. If you need help with installation or have any technical questions, we can provide FREE support - please contact us by email or phone.

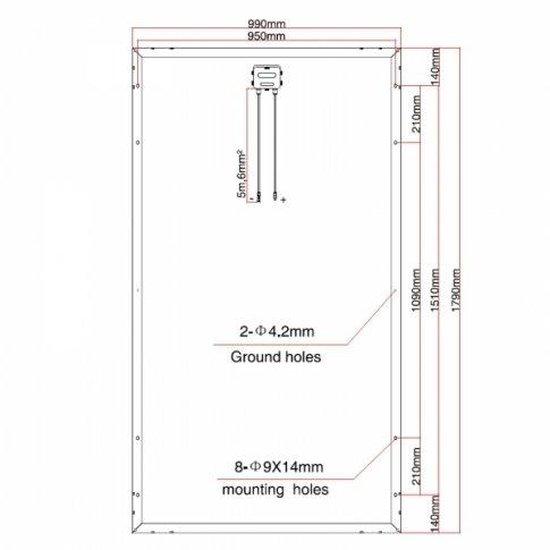

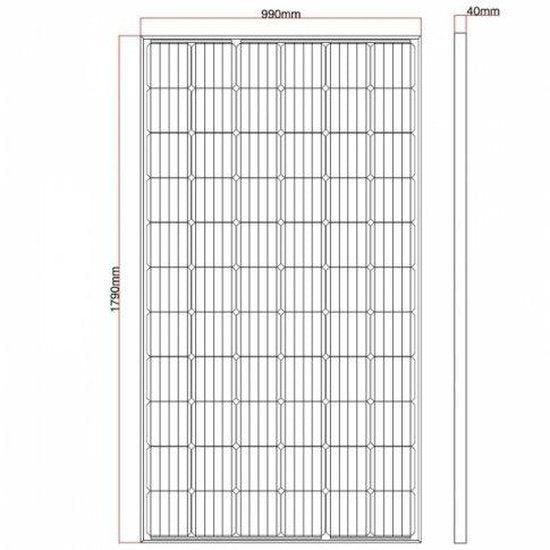

Additional Information: Technical drawings of Photonic Universe 320W 12V solar panel SWD-320M (Front) and Technical drawing of Photonic Universe 320W 12V solar panel SWD-320M (Back) are available for download.
