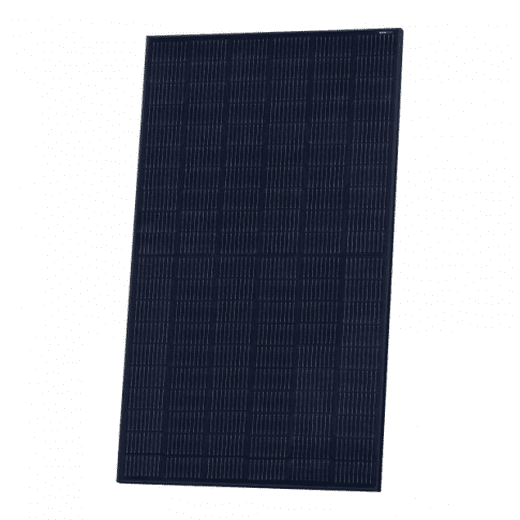

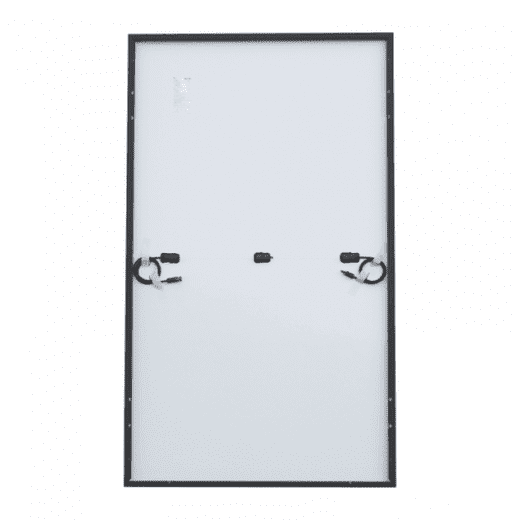

380w Black Lg Neon® 2 Monocrystalline Solar Panel With Cello Technology™

This high-quality 380W black solar panel is the best-selling solar module from LG Solar, a world-leading manufacturer and a part of LG Electronics. It has won the Intersolar and Top Brand PV industry awards and is MCS certified. It is suitable for a wide variety of applications, including grid-tie household systems and off-grid installations. The Cello Technology™ used in this panel enhances its efficiency and reliability by replacing the small number of wide busbars in standard panels with nine thin wires.

This design reduces electrical losses and increases the amount of light that reaches the solar cells. The panel is also highly durable and can perform well in various environmental conditions, offering up to 30% more power than similar panels under high-temperature conditions. It is rated to withstand heavy loads and is fully waterproof. The front load rating is up to 6,000Pa, and the rear load rating is 5,400Pa.

Remember the following details:

**Warranty:** The panel's output and workmanship are guaranteed for 25 years. The linear performance warranty ensures a maximum annual output loss of 0.33% after the first year, maintaining at least 98.5% power production in the 25th year. This is 5-10% higher than other solar cell manufacturers.

**Specifications:**

- Peak power: 380W

- Maximum power voltage: 35.2V

- Maximum power current: 10.83A

- Open circuit voltage: 41.7V

- Short circuit current: 11.43A

- Power tolerance: 0 ~ +3%

- Dimensions: 1768 x 1042 x 40 mm

- Weight: 18.5 kg

- Mounting holes for easy installation

- 2x 1.2m high-quality single-core solar cable

- Male and female MC4 waterproof connectors

**Warranty Information:** The product is covered by a 25-year workmanship warranty provided by LG Solar. The solar cells are guaranteed to produce at least 98.5% of nominal power in the first year after purchase and no more than 0.33% degradation of nominal power each year thereafter until 25 years after purchase, for a minimum of 90.6%.

**Instructions:** The solar panel does not include an installation manual as it needs to be connected to devices such as a solar charge controller or inverter, which come with their own manual.

**Important Note:** If you plan to use this solar panel to charge batteries, it is essential to use it with a suitable solar charge controller. We recommend the following types of solar charge controllers:

- For 12V batteries: a high-efficiency MPPT solar charge controller rated at 30A or higher

- For 24V batteries: a high-efficiency MPPT/standard PWM solar charge controller rated at 20A or higher

**Support:** If you need help with installation or have any technical questions, we can provide FREE support. Please contact us by email or phone.
