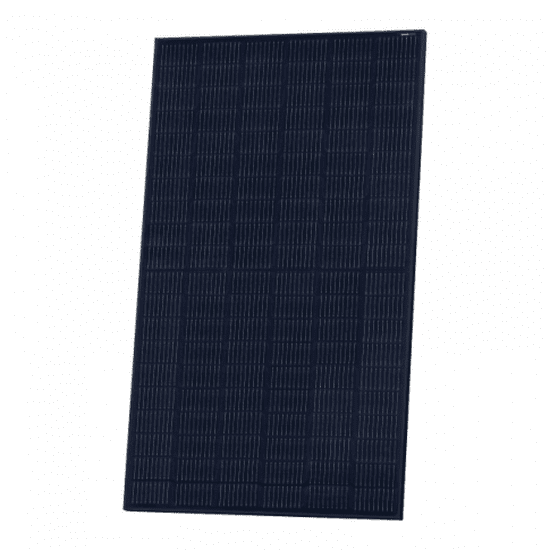

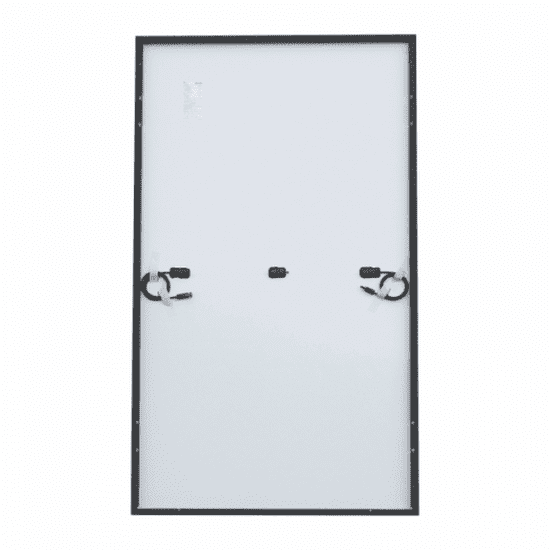

380W Black LG Neon² Monocrystalline Solar Panel with Cello Technology

The 380W Black LG Neon 2 monocrystalline solar panel with Cello Technology is a high-quality product and is considered the best-selling solar module from the world-leading solar manufacturer LG Solar, which is a part of the global company LG Electronics. LG Solar has won the Intersolar and Top Brand PV industry awards. This MCS certified panel is suitable for various applications, including grid-tie household systems and off-grid installations where mains power is limited or unavailable.

Cello Technology enhances the efficiency and reliability of the solar panel by replacing the small number of wide busbars in standard solar panels with nine thin wires. The decreased spacing between wires reduces electrical losses by providing a shorter path for electricity to travel. The cylindrical cross-section design keeps resistance low and deflects more light onto the solar cell, unlike flat busbars which reflect light away from the panel. The tight layout of the wires also provides multiple paths for electricity, enhancing long-term reliability through added redundancy. The panel is fully waterproof and designed for strong performance in a wide range of environments, continuing to perform well even in high temperatures or low irradiance - providing up to 30% more power than similar panels under high temperature conditions.

The panel is rated for a front load of up to 6,000Pa, which is equivalent to being buried under 1.8m of snow, and a rear load of 5,400Pa, greater than the force applied by hurricane-strength winds. Both the output and workmanship of the panel are guaranteed for 25 years. The linear performance warranty guarantees a loss of no more than 0.33% of the panel output per year after the first year, and no less than 98.5% power production in the 25th year, which is 5-10% higher than other solar cell manufacturers.

Specifications:

- Peak power: 380W

- Maximum power voltage: 35.2V

- Maximum power current: 10.83A

- Open circuit voltage: 41.7V

- Short circuit current: 11.43A

- Power tolerance: 0 ~ +3%

- Dimensions: 1768 x 1042 x 40 mm

- Weight: 18.5 kg

- Mounting holes for ease of installation

- 2x 1.2m high-quality single-core solar cables

- Male and female MC4 waterproof connectors

The product is covered by a 25-year workmanship warranty provided by LG Solar. In addition, the solar cells are guaranteed to produce at least 98.5% of nominal power in the first year after purchase and no more than 0.33% degradation of nominal power each year until 25 years after purchase, for a minimum of 90.6%.

Please note that this solar panel does not include an installation manual as it must be connected to further devices such as a solar charge controller or inverter, which are supplied with a manual. If the application of this solar panel is to charge batteries, it is essential to use it with a suitable solar charge controller. For 12V batteries, a high-efficiency MPPT solar charge controller rated at 30A or higher is recommended, while for 24V batteries, a high-efficiency MPPT/ or standard PWM solar charge controller rated at 20A or higher is recommended. If you need help with installation or have any technical questions, free support is available via email or phone. Additionally, you can download the datasheet and guarantee for LG NeON 2 380W black monocrystalline solar panel (LG-380MB).
