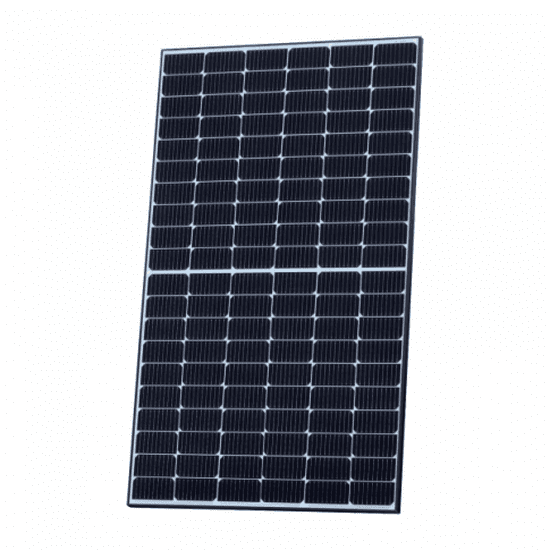

380W LG Neon 2 monocrystalline solar panel with Cello Technology

This is a high-quality 380W solar panel manufactured by LG Solar, which is part of the global company LG Electronics. The panel has received the Intersolar and Top Brand PV industry awards and is MCS-certified. It is suitable for a variety of applications, ranging from grid-tie household systems to off-grid installations where mains power is limited or unavailable.

The panel features Cello Technology, which enhances efficiency and reliability by replacing the small number of wide busbars in standard solar panels with nine thin wires. This design reduces electrical losses and increases light capture by the solar cell. The panel is also designed to perform well in various environments, with up to 30% more power output than similar panels under high-temperature conditions. It is rated for a load of up to 6,000Pa from the front and a rear load of 5,400Pa, ensuring durability in harsh weather conditions.

Moreover, both the output and workmanship of the panel are guaranteed for 25 years, demonstrating LG Solar's commitment to superior performance and reliability.

The LG Solar panel comes with a 25-year workmanship warranty. It guarantees that the solar cells will produce at least 98.5% of their nominal power in the first year after purchase and no more than 0.33% degradation each year for 25 years, ensuring a minimum of 90.6% power production over the 25-year period. The peak power is 380W with a maximum power voltage of 35.1V and a maximum power current of 10.85A. It also includes open circuit voltage of 41.7V, short circuit current of 11.39A, and a power tolerance of 0 ~ +3%.

The panel has dimensions of 1768 x 1042 x 40 mm and weighs 18.5 kg. It comes with mounting holes for easy installation and 2x 1.2m of high-quality single-core solar cable with male and female MC4 waterproof connectors. Please note that the solar panel does not include an installation manual, as it needs to be connected to other devices such as a solar charge controller or inverter, which are supplied with a manual. If you need help with installation or have any technical questions, free support is available via email or phone.

Additionally, you should ensure that the solar panel is used with a suitable solar charge controller if the application is to charge batteries. For 12V batteries, a high-efficiency MPPT solar charge controller rated at 30A or higher is recommended, and for 24V batteries, a high-efficiency MPPT / or standard PWM solar charge controller rated at 20A or higher is suitable. You can download the datasheet and guarantee for the LG NeON 2 380W monocrystalline solar panel (LG-380M).
