80W 12V solar charging kit with 10A controller and 5m cable

Get reliable power anywhere with our 80W 12V Solar Charging Kit. It's easy to set up and perfect for your 12V batteries. Power your camper van, boat, shed, or remote equipment with ease. This kit gives you the energy you need, exactly when you need it.

Why pick this kit? Enjoy independent power, keep your batteries healthy, and watch your system work. All this comes in one complete package. It's made for people who want strong, simple energy solutions for their mobile or fixed power needs.

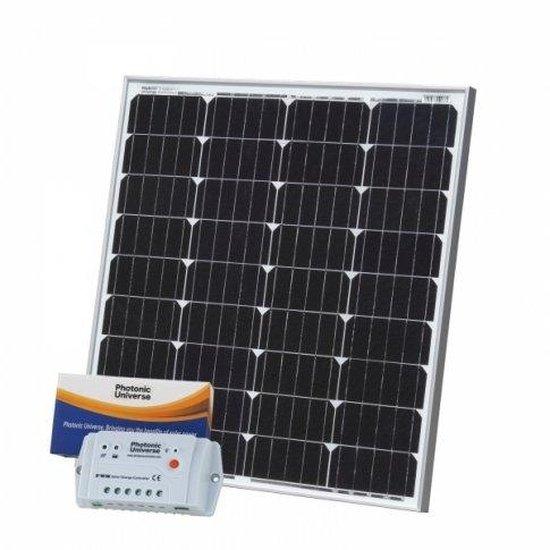

This full kit has everything you need to start making solar power:

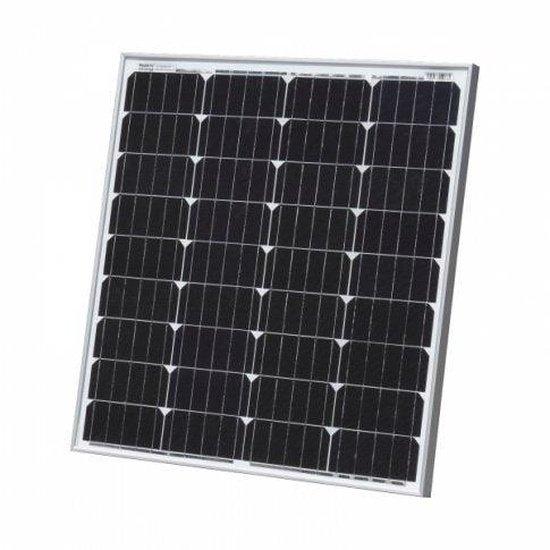

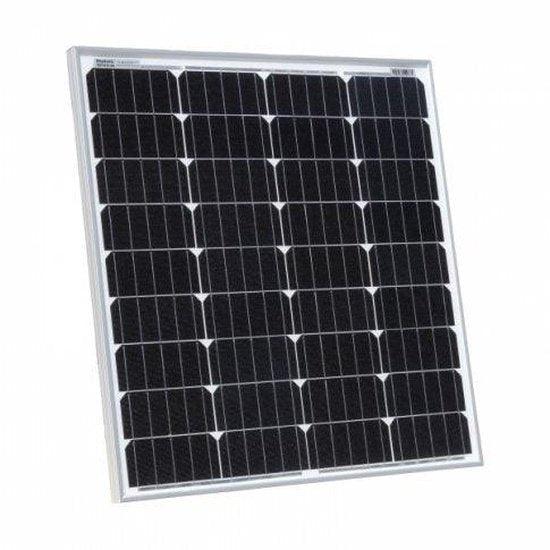

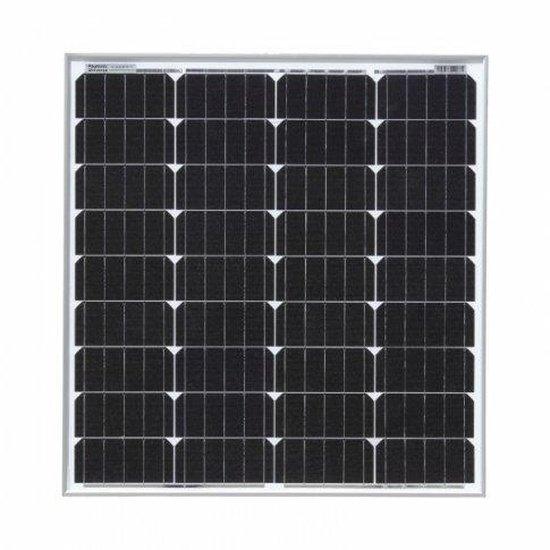

• Strong 80W Solar Panel: This panel is very efficient and waterproof. It's great for outdoor use. It comes with 5 meters of special solar cable. This cable works well even on hot roofs, losing very little power. It also has MC4 connectors already attached. This makes it quick and easy to connect to your system or other solar parts.

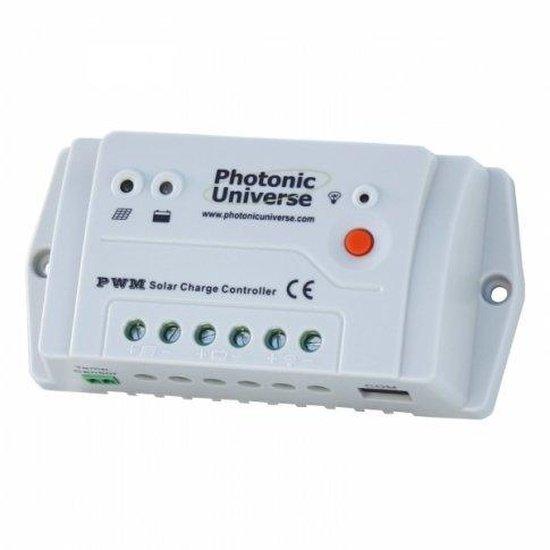

• Smart 10A Solar Charge Controller: This clever 12V/24V controller uses advanced PWM tech. It protects your batteries and helps them last longer. It stops problems like overcharge, over-discharge, overload, short circuits, and too much heat. It also keeps your battery from losing power at night.
• Works with Many Batteries: The controller works fine with sealed, gel, and flooded batteries. This gives you many choices for storing power.
• Easy to Watch & Control: Stay informed and in charge. Use the controller's communication tools. You can check and change your system's work. Use a remote LCD meter, a Wi-Fi module, or connect to your PC/laptop with a special cable. See details like voltage, current, battery level, and energy used.

Important Notes:

• This kit does not include mounting parts or battery cables. You will need to buy these separately.
• The solar panel and charge controller might ship from different places. They could arrive in separate boxes.
• The solar charge controller is not waterproof. You must install it indoors for it to work well and last a long time.

Product Details:

Solar Panel Specs:
Peak Power: 80W
Max Power Voltage: 20.2V
Max Power Current: 3.96A
Open Circuit Voltage: 23.9V
Short Circuit Current: 4.21A
Power Range: +/- 3%

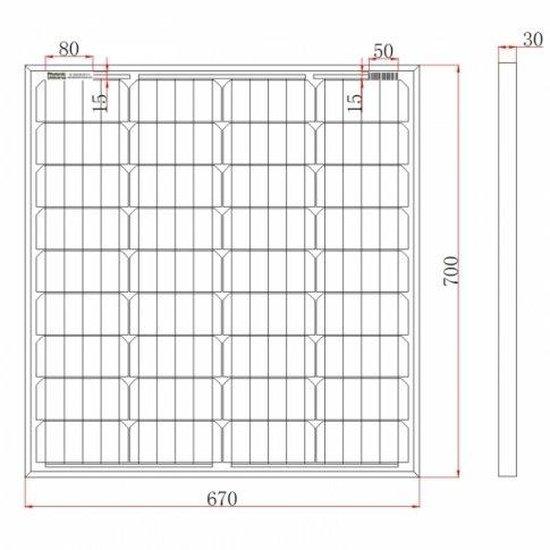

Size: 700 x 670 x 30 mm
Weight: 6 kg

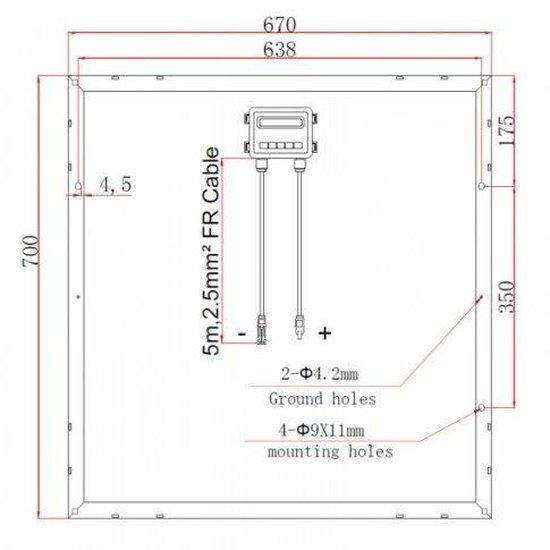

Mounting Holes: 4 holes, 9 x 11 mm each

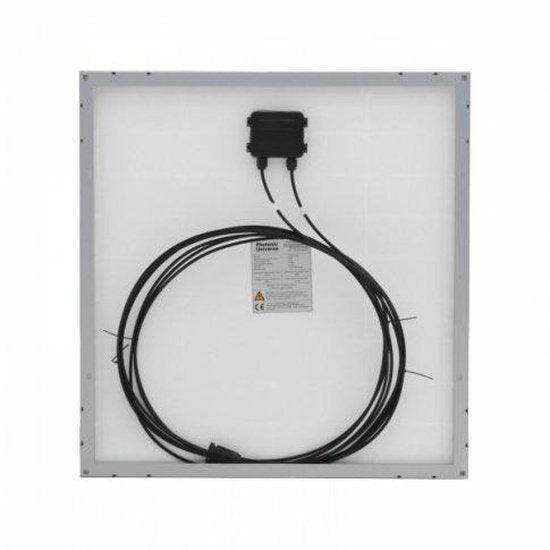

Cable: Two 5m high-quality single-core solar cables. They are 2.5mm thick and have MC4 Connectors already on them.

Charge Controller Specs:
Rated Current: 10A
Works by itself: Auto 12V/24V selection
Solar Input: Wide range, up to 50V
Connections: 3 pairs of terminals (input, battery, output)
Lights: LEDs show charging, battery status, and load
Temperature help: Sensor for automatic changes (-3mV/°C/2V)
Protection: Stops overload (1.05x discharge), short circuit (2x discharge), overcharge/discharge, and overheating.
Uses very little power: 8.4mA (12V) / 7.8mA (24V)
Working Temp: -35°C to +50°C
Wire Size: For wires up to 4mm²
Size: 13.8 x 6.9 x 3.7 cm
Weight: 130 g
Easy to mount: Many holes for simple install.
Max Solar Input: Takes up to 160W (12V battery) / 320W (24V battery) of solar power.

Warranty:

Your purchase is safe. Photonic Universe gives a 1-year warranty for this kit. This covers the solar charge controller and the solar panel's build quality. If items are faulty, we will fix or replace them. Also, the solar cells themselves are guaranteed. They will make at least 90% of their power for 10 years and 80% for 25 years. This is from the maker of the cells.

How to Install:

The solar charge controller comes with a detailed user guide. It has a wiring map and install steps. Please read it all before you start. For putting the solar panel on a flat roof, you can use metal or plastic brackets. Find all our mounting parts in the accessories section on our shop.
Need help with installing or have tech questions? We offer FREE support. Just contact us by email or phone.

Choose the 80W 12V Solar Charging Kit. Get reliable, simple, and smart power. This kit gives great performance, saves your batteries, and is easy to monitor. It's the right choice for anyone needing steady power off-grid. Power your life, simply and surely.
