Description

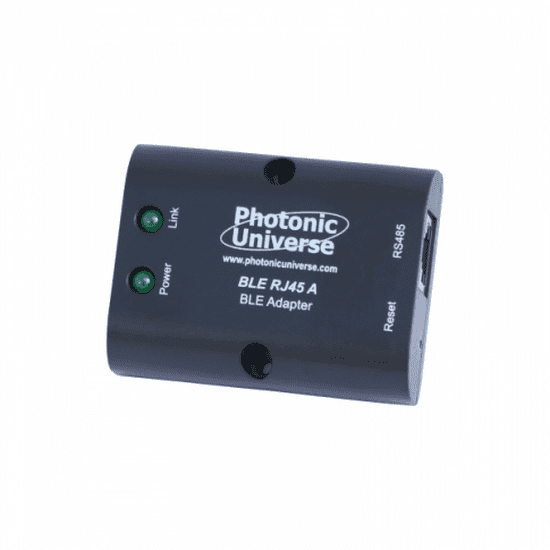

xThis Bluetooth module is designed to connect with your solar charge controller, enabling wireless communication with your mobile device. You can use the free pairing app on your phone to monitor the parameters of the solar charge controller (applicable to Tracer TR/PTR series, VS****BN, DM, and MSC series controllers only) and to adjust charging and load settings for your solar system. The module comes with a 1.9m cable for easy installation.
The app is available for iOS devices [here] and for Android devices [here]. The mobile app provides full control over the charging process and can display various charging parameters such as voltage, current (separately for solar panel/load), battery state of charge, etc. It can also store accumulated charge and discharge energy, as well as minimum/maximum voltage readings. By adding the Bluetooth module to your solar charge controller, you'll unlock a range of exclusive settings on the mobile app, offering greater control over your solar system. With access to a wide range of charging parameters, you'll be able to:
- Adjust the battery type and capacity
- Select charging volts for different charging stages
- Specify the duration of each charging stage
- Create a user-defined battery type with charging parameters specific to your battery (if the pre-existing options are unsuitable)
- Personalize the 'load' settings, e.g., set timers for lighting, fans, pumps
The LED indicators on the unit also show power and network status.
Please take note of the following information: This unit has extremely low power consumption. The Bluetooth module has a communication radius of up to 10 meters and is equipped with a 1.9m cable with RJ45 connectors. You can replace this cable with a shorter or longer one of your own. For controllers with a RS485 port, you will need an additional RS485 to RJ45 cable for connection. Please be aware that this Bluetooth module is not suitable for dual battery solar charge controllers.
Bluetooth Module Specifications:
- Communication radius of up to 10m
- Compatible with TR, PTR, VS****BN, LS**24B, and PU series controllers
- Cable length: 1.9m
- Connection: RJ45
- Power consumption: 5V @ 30mA
- Port baud rate: 2400bps-115200bps (default 115200bps)
- Enclosure: IP30
- Dimensions: 51 x 67 x 24.5mm
- Weight: 37.9g
- Mounting holes for ease of installation
You can download the user manual for the Photonic Universe Bluetooth module for solar charge controller monitoring and programming (EBOX-BT).
