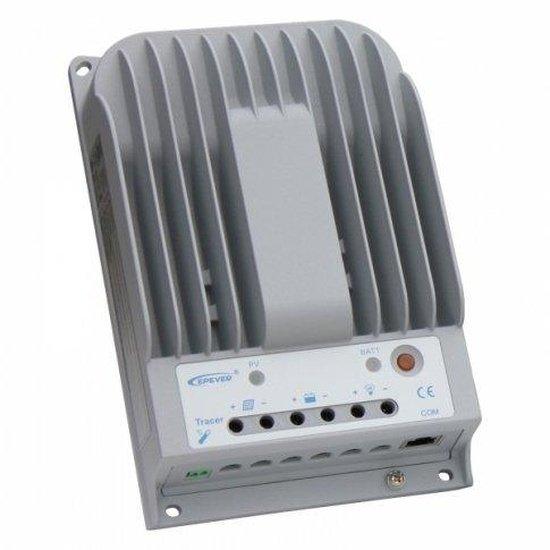

High efficiency 20A MPPT solar charge controller for solar panels up to 260W (12V) / 520W (24V) up to 150V

Please take note of the information below:

MPPT Technology:

This solar charge controller utilizes advanced Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels. This point varies depending on sunlight exposure and temperature, and the technology ensures maximum efficiency of your solar system. It outperforms standard PWM solar controllers and has a wide solar input voltage range, allowing it to work with a variety of solar panels. For a 12V battery system, the maximum combined input solar power allowed is 260W, and for a 24V system, it's 520W.

Full System Protection:

The charge controller includes a range of electronic protection functions, such as reverse current prevention at night, automatic cut-off to prevent over-charging and deep discharge, solar panel over-voltage protection, over-load protection, short circuit protection, and reverse polarity protection. It also has self-diagnostic capability and can highlight system errors using advanced fault-targeting technology. Additionally, there is an optional audible alarm to alert the user of any system failures.

Additional Features:

The controller automatically recognizes 12/24V battery systems and has LED lights to indicate charging status and battery condition. It also features a current limiting function, die-cast aluminum design for heat dissipation, and multiple connectivity options. These options include connection to a remote meter with an LCD screen, a Wi-Fi module for monitoring and adjusting parameters through a mobile app, and connection to a PC/laptop using an RJ45 to USB cable.

Using one of these communication methods, the user can access various charging parameters such as voltage, current, battery state of charge, accumulated charge and discharge energy, min/max voltage, and more. Additionally, the controller has a socket for connecting a remote temperature sensor to measure the battery temperature more precisely and optimize the charging process.

Please take note of the following controller specifications:

- The controller utilizes the most advanced MPPT technology to ensure high efficiency (>95%) of your solar system.

- It operates fully automatically and can auto select between 12V and 24V.

- It has 3 pairs of terminals (solar panel, battery, load) for wires up to 10mm.

- The maximum solar panel voltage is 150V and the maximum solar panel power is 260W (12V) / 520W (24V).

- It features a temperature sensor for automatic compensation (-3mV/C/2V) and comprehensive electronic protection features.

- Additionally, it has a communication port RS485/RJ45 interface, negative common grounding, and a current limiting function (20A).

- Its self-consumption is less than 60mA (12V) or less than 30mA (24V).

- The working temperature ranges from -35C to +55C.

- The size is 21.6 x 14.2 x 5.6 cm, and it weighs 1.5 kg.

- It also features multiple mounting holes for ease of installation.

- The product is covered by a 2-year manufacturer warranty and comes with a detailed user manual that explains wiring and operations.

- Moreover, advanced users will benefit from a section in the manual explaining MPPT technology.

- If you require assistance with installation or have any technical questions, free support is available. Please contact us via email or phone.

- You can download the following documents for this product: User manual for TR2215BN and High efficiency 20A MPPT solar charge controller.
