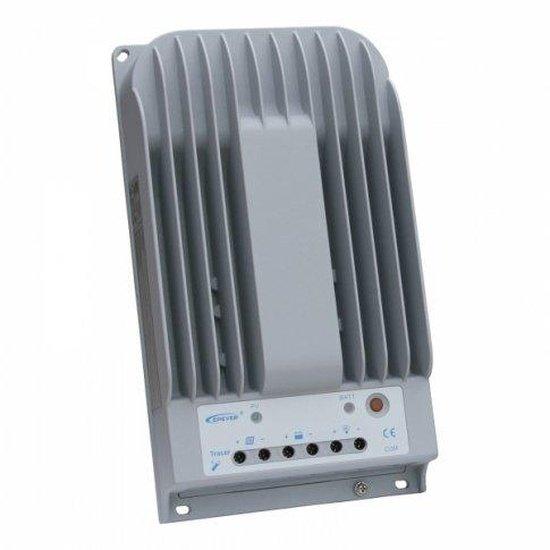

High efficiency 30A MPPT solar charge controller for solar panels up to 390W (12V) / 780W (24V) up to 150V

Tired of losing valuable solar energy? Discover the High Efficiency 30A MPPT Solar Charge Controller. This powerful device is your ultimate solution for maximizing power from your solar panels! With advanced MPPT technology, it ensures you capture every ray. You'll boost your system's output significantly, often by up to 30% compared to older methods. Enjoy reliable, optimized power and extend your battery life. Get complete peace of mind for your off-grid adventures or home power needs.

• Advanced MPPT Technology: Maximizes power harvest from your solar panels, offering up to 99.5% tracking efficiency and over 95% power conversion efficiency.
• High Power Handling: Manages solar panels up to 390W for 12V battery systems or 780W for 24V battery systems.
• Wide Voltage Compatibility: Accommodates a broad range of solar panel voltages, supporting inputs up to 150V.
• Automatic System Recognition: Seamlessly identifies and adapts to both 12V and 24V battery systems.
• Robust Protection: Features a comprehensive suite of electronic protections including overcharging, deep discharge, short circuit, overvoltage, and reverse polarity.
• Expandable Capacity: Built-in 30A current limiting function allows for future expansion of your solar array.
• Efficient Cooling: Crafted with a durable die-cast aluminum design for excellent heat dissipation.
• Flexible Monitoring & Control: Offers multiple connectivity options for remote monitoring and parameter programming.
• Optimized Charging: Includes a dedicated port for an optional remote battery temperature sensor to fine-tune charging.
• Clear Indicators: Integrated LED lights provide instant feedback on charging status and battery condition.

This advanced 30A MPPT solar charge controller is the smart heart of your solar power system. It uses Maximum Power Point Tracking (MPPT) technology, the industry's best for energy harvesting. What does this mean for you? The controller constantly finds the sweet spot of your solar panels. This ensures you pull the maximum possible power, no matter the sunlight or temperature. You'll notice a significant boost in energy collection, often up to 30% more power than with older PWM controllers. Plus, its wide solar input voltage range means you can connect panels up to 150V. This includes high-voltage panels or multiple panels in series. It works seamlessly with your 12V or 24V battery bank. It's especially powerful for systems where your panel voltage is much higher than your battery voltage, making sure you don't waste any precious solar energy.

Your solar system is a valuable asset, and this controller is built to protect it. It features a complete suite of electronic safeguards, ensuring long-term reliability and peace of mind. These include:

• Reverse Current Prevention: Stops battery power from draining back into your panels at night.
• Automatic Cut-Off: Prevents damaging over-charging and deep discharge of your batteries.
• Solar Panel Overvoltage Protection: Guards against excessive voltage from your solar array.
• Overload, Short Circuit & Reverse Polarity Protection: Comprehensive defense against common electrical issues.

Beyond these, the controller boasts self-diagnostic capabilities, pinpointing any system errors with advanced fault-targeting technology. For added safety, an optional audible alarm can alert you to potential system failures, keeping you informed and in control.

Designed for user convenience, this 30A MPPT controller automatically recognizes whether you're using a 12V or 24V battery system, simplifying setup. Remember to always connect your battery to the controller first before connecting any solar panels. Bright LED lights provide instant feedback on your charging status and battery health. The robust 30A current limiting function means you have the flexibility to expand your solar array in the future without needing a new controller. Plus, the premium die-cast aluminum construction ensures excellent heat dissipation, keeping your unit cool and extending its lifespan.

Take charge of your solar power like never before with the controller's advanced communication features. You can monitor performance and program settings through several convenient methods:

1. Remote Meter (MT50): Connect an optional MT50 LCD remote meter to view real-time system data and manually adjust parameters right from a convenient display.
2. Wi-Fi Module & Mobile App: Add a Wi-Fi module to create a local network, allowing you to connect your smartphone or tablet. Use the free mobile app (available for Android and iOS) to monitor charging parameters and adjust settings from anywhere within range.
3. PC Software (Solar Station Monitor): For detailed analysis, use an RJ45 to USB cable to connect directly to your Windows-based PC or laptop. The free Solar Station Monitor program provides comprehensive data and full control over your system.

Through these options, you gain access to vital statistics like voltage, current (for both solar panels and load), battery state of charge, accumulated energy, and more. You can also customize your system by amending battery types, setting specific charging voltages for different stages, creating user-defined battery profiles, and personalizing 'load' settings – perfect for scheduling lights, fans, or pumps.

While the controller already has a built-in temperature sensor and intelligent heat management, it also includes a dedicated socket for a remote temperature sensor. By attaching this sensor directly to your battery, the controller can measure battery temperature more precisely, leading to an even more optimized and efficient charging process. This helps prolong your battery's life and performance.

This high-performance MPPT controller is engineered for reliability:

• Efficiency: Over 95% power conversion efficiency with advanced MPPT.
• Automatic Operation: Fully automatic with 12V/24V battery auto-selection.
• Terminals: Features 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm².
• Max Solar Input Voltage: 150V.
• Max Solar Input Power: 390W (for 12V systems) / 780W (for 24V systems).
• Temperature Compensation: Automatic compensation (-3mV/°C/2V) via built-in or remote sensor.
• Protection: Comprehensive electronic protection features ensure safety.
• Communication: RS485/RJ45 interface for versatile connectivity.
• Grounding: Negative common ground.
• Current Limiting: Fixed at 30A.
• Self-Consumption: Extremely low, less than 60mA (12V) and less than 30mA (24V).
• Working Temperature: Functions reliably from -35°C to +55°C.
• Dimensions: Compact at 28.1 x 15.9 x 6.0 cm (11.06 x 6.26 x 2.36 inches).
• Weight: Lightweight at 2.2 kg (4.85 lbs).
• Installation: Designed with multiple mounting holes for easy and secure setup.

Your purchase includes a detailed user manual that covers wiring instructions and operational guidance. For those interested in the technical aspects, a dedicated section explains the nuances of MPPT technology. Should you require any assistance with installation or have technical questions, we provide FREE support – simply contact us via email or phone. Rest assured, your investment is protected by a 2-year manufacturer warranty.

Invest in the High Efficiency 30A MPPT Solar Charge Controller and truly experience what optimized solar power feels like. You'll capture more energy, extend your battery life, and benefit from unmatched system protection. All these features come with complete control right at your fingertips. Whether you're building a new solar setup or upgrading an existing one, this controller is your key. It leads to a more efficient, reliable, and worry-free solar journey. Don't settle for less – unlock your solar system's full potential today and secure your energy independence!
