High efficiency 40A MPPT solar charge controller for solar panels up to 520W (12V) / 1040W (24V) up to 150V

Unlock the full potential of your solar setup with our High-Efficiency 40A MPPT Solar Charge Controller. Designed to maximize your energy harvest, this advanced controller ensures you get significantly more power from your solar panels compared to standard options. Enjoy a stable, reliable, and easily expandable solar system, perfect for those seeking true energy independence and peace of mind.

This controller is built for performance and durability, making it an ideal choice whether you're setting up a new off-grid system or upgrading an existing one. Its smart features take the guesswork out of solar power, letting you focus on enjoying reliable energy.

• Advanced MPPT Technology: Boosts solar panel output by up to 30%
• High Efficiency: Operates at over 95% efficiency for maximum energy capture
• Wide Compatibility: Works with 12V/24V battery systems and solar panels up to 150V
• Robust Power Handling: Supports up to 520W (12V) or 1040W (24V) of solar input
• Comprehensive Protection: Safeguards your entire solar system
• Future-Proof Design: 40A current limiting allows for easy system expansion
• Smart Monitoring & Control: Multiple options to check and adjust settings

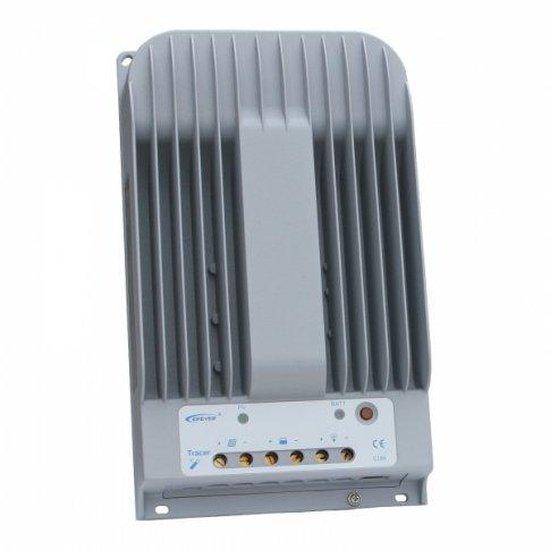

• Durable Build: Die-cast aluminum for excellent heat dissipation
• Easy to Install: Includes detailed manual and multiple mounting points
• Peace of Mind: Backed by a 2-year manufacturer warranty and free support

Our controller utilizes cutting-edge Maximum Power Point Tracking (MPPT) technology. This smart feature constantly finds the optimal voltage point for your solar panels, boosting their power output by up to 30% when compared to older PWM controllers. It's truly a game-changer for maximizing your energy harvest. Plus, it's incredibly versatile, compatible with a wide range of solar panel voltages, from standard 12V/24V off-grid panels to high-voltage arrays up to 150V. This is especially beneficial when your solar panel voltage is much higher than your battery's, ensuring every watt is efficiently captured.

Enjoy complete peace of mind with a full suite of electronic protection functions built right in. This controller includes robust safeguards against reverse current, over-charging, deep discharge, solar panel over-voltage, overload, short circuits, and reverse polarity. It even features smart self-diagnostic capabilities, pinpointing and highlighting any system errors with advanced fault-targeting technology. For immediate alerts, an optional audible alarm is available to notify you of any system failures.

Setting up is simple as the controller automatically recognizes both 12V and 24V battery systems. Bright LED indicators keep you informed about the charging status and battery condition at a glance. A standout feature is its 40A current limiting function, which means you can add more solar panels to your system in the future without needing a new controller. The rugged die-cast aluminum design ensures excellent heat dissipation, keeping your system cool and extending its lifespan.

This model offers superb communication options, giving you flexible ways to monitor and program your solar charge controller's parameters:

• Connect to a remote meter MT50 with an LCD screen to view system performance and manually adjust settings.
• Connect a Wi-Fi module to create a Wi-Fi network, allowing you to monitor and adjust charging parameters and controller settings via a free mobile app (available for Android and iOS).
• Use an RJ45 to USB cable to connect directly to a Windows PC or laptop. Our free 'Solar Station Monitor' software lets you monitor and adjust parameters with ease.

By using any of these methods, you gain full control over your charging parameters, allowing you to fine-tune settings to match your specific energy needs. Additionally, the controller features a built-in temperature sensor and intelligent heat-dissipating design. A dedicated socket for connecting a remote temperature sensor is also available, ensuring highly accurate battery temperature measurements and optimized charging.

• Efficiency: Over 95% for optimal energy harvest
• Voltage Recognition: Automatic 12V/24V system detection
• Terminals: 3 robust pairs (solar panel, battery, load) for wires up to 25mm
• Max Solar Panel Voltage: Up to 150V for versatile setups
• Max Solar Panel Power: 520W (for 12V systems) / 1040W (for 24V systems)
• Temperature Compensation: Built-in sensor for accurate battery charging (-3mV/C/2V)
• Protection: Comprehensive electronic safeguards
• Communication: RS485/RJ45 interface for advanced monitoring
• Grounding: Negative common ground design
• Current Limiting: Stable 40A output
• Self-Consumption: Extremely low (<60mA for 12V, <30mA for 24V)
• Working Temperature: Wide range from -35°C to +55°C
• Dimensions: Compact 30.2 x 18.2 x 6.3 cm
• Weight: 2.9 kg
• Installation: Multiple mounting holes for easy setup
• Warranty: 2-year manufacturer warranty for your peace of mind

Setting up your new solar controller is straightforward. Each unit comes with a detailed user manual covering all wiring and operation steps. For those interested in the technical aspects, the manual also includes a section explaining MPPT technology in depth. And if you ever have questions during installation or need technical advice, our friendly support team is always ready to help via email or phone. Your successful solar setup is our priority!

Choose the High-Efficiency 40A MPPT Solar Charge Controller for a solar system that truly performs. Experience the benefits of maximized power output, comprehensive safety features, and flexible control options. Whether you're building a new off-grid system or upgrading an existing one, this controller provides the efficiency, reliability, and expandability you need. Invest in smarter solar power today and enjoy unparalleled energy independence.
