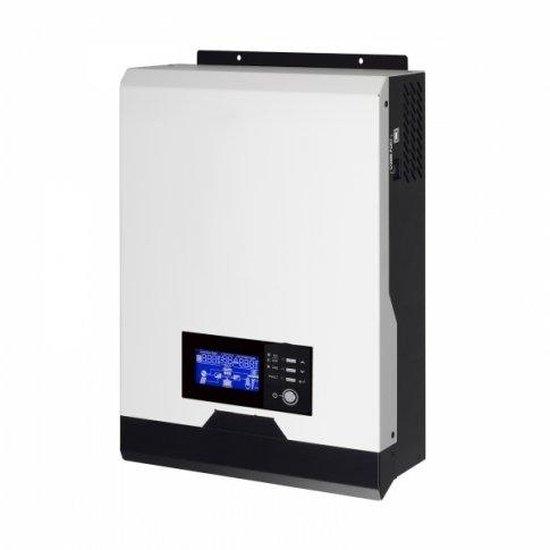

Iconica 2000W 24V hybrid pure sine wave inverter with 40A MPPT solar controller and 25A mains charger

The Iconica 2000W 24V hybrid inverter combines the functions of a 2000W pure sine wave inverter, a 40A MPPT solar charge controller, and a 25A smart battery charger in one portable unit. This model can accept input from solar panels, mains power/generator, and a battery, either individually or in combination. In addition to its hybrid capability, this innovative inverter features advanced communication functions and a menu full of highly customizable settings. It is the perfect solution for any off-grid application with limited or zero access to traditional mains power.

This hybrid inverter includes an Uninterrupted Power Supply (UPS), making it the perfect choice for applications where the power supply is unreliable, intermittent, or expensive to maintain. The inverter is suitable for both stationary and mobile off-grid installations such as remote properties, holiday homes, huts, cabins, narrowboats, and yachts. It can also help customers reduce their mains electricity usage and save on electricity bills, and it can serve as a reliable backup system in areas prone to frequent power cuts.

Please take note of the following details:

Key functions:

1. 2000W 24V Pure Sine Wave Inverter: This device converts DC current into 230V AC mains electricity, allowing you to power various household appliances such as a TV, laptop, lighting, and fans. It is capable of providing 2000VA of continuous power with a peak power handling capability of up to 4000VA, which is useful for starting appliances with electric motors. This inverter is a pure sine wave type, which makes it more efficient and compatible with a wider range of appliances compared to modified sine wave inverters.

2. Inbuilt 40A MPPT Solar Charge Controller: The high-efficiency MPPT controller manages the input from the solar panels to the batteries or a load. It includes a full range of safety functions, providing protection against overcharge, overheating, reverse current, and other potential issues.

The controller can operate at up to 98% efficiency to extract the maximum power from the solar array. It includes an enhanced 25A Smart battery charger designed for safe and efficient unattended charging of a battery from a mains power source or generator. It provides full overcharge protection and multiple charging stages. The Iconica 2000W 24V hybrid inverter has several unique features, including:

- Output source priority: This feature allows the user to set preferences for the AC load output of the inverter, such as solar power, battery power, mains input, or a generator. It offers options for various conditions and scenarios, such as prioritizing energy sources when solar power is insufficient, battery voltage is too low, or mains power is unavailable.

- Battery charging priority: The inverter offers a wide selection of battery charging priority options, including charging the battery using solar power only, a combination of solar power and mains power, or from mains power only.

- Customizable settings: The inverter parameters can be personalized extensively through the user-friendly interface. Users can customize parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points, preferred charging source upon reconnection, duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, and battery equalization stage characteristics.

The inverter offers multiple options for managing operational features like the audible alarm and backlight settings. It has an illuminated LCD screen that displays changeable vital statistics using the up/down keys, including status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current, and more.

Additionally, the inverter comes with a PC connection cable and software CD for convenient viewing of important system information such as solar/battery/AC voltage, charging current, battery capacity, and more. Detailed data logs can be viewed and exported to PDF/Excel formats.

Moreover, the inverter can send data to an online user portal using a Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (sold separately). By connecting via one of these methods, users can access exclusive features such as email/push notification/SMS status updates for the inverter, remote system monitoring from any location, and much more.-

Please take note of the following information:

Auto restart function: If overload or overheating occurs, the inverter will disconnect the load appliances and automatically reconnect once safe conditions are detected. The built-in fan helps maintain an optimal operational temperature.

Intelligent cooling design: The inverter uses predictive fan logic based on performance and temperature, with 1 or 2 fans operating at variable speeds, to prevent overheating of the components.

Compatibility: This hybrid inverter is suitable for 24V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs. It also supports user-defined battery types with customizable settings for charging other lead-acid batteries. The inverter includes a 1.5m cable with a 3-pin UK plug for connection to a mains power outlet. More information can be found in the Details and Specifications tab.

Inverter specifications:

- Nominal battery voltage: 24V

- Continuous power output: 2000W / 2000VA

- Surge power: 4000VA

- Output voltage: 230V AC

- Output frequency: 50Hz/60Hz

- Output waveform: Pure sine wave

- Maximum solar input power: 1000W

- Maximum open circuit solar input voltage: 102V

- Maximum solar charging current: 40A

- MPPT operating voltage range: 30V to 80V

- Maximum mains AC charging current: 25A

- Maximum combined charging current: 60A

- Peak efficiency: 93%

- Operating temperature: -10°C to 50°C

Supplied with:

- 1.5m AC power cable with 3-pin UK plug

- PC connection cable and PC software CD

- Size: 32 x 22.5 x 8.8 cm

- Weight: 5.5 kg

This product is covered by a 1-year manufacturer warranty. Please note that due to the low noise emitted by the cooling fans, this inverter may not be suitable for installation in locations that require absolute silence, such as bedrooms at night. The product comes with a detailed user manual that explains wiring and operations (see Documents tab). If you need help with installation or have any technical questions, free support is available. Please contact us by email or phone. User manuals for the Iconica IC-BM2000-24 hybrid power inverter and 'WatchPower' PC software for the same are available for download.
