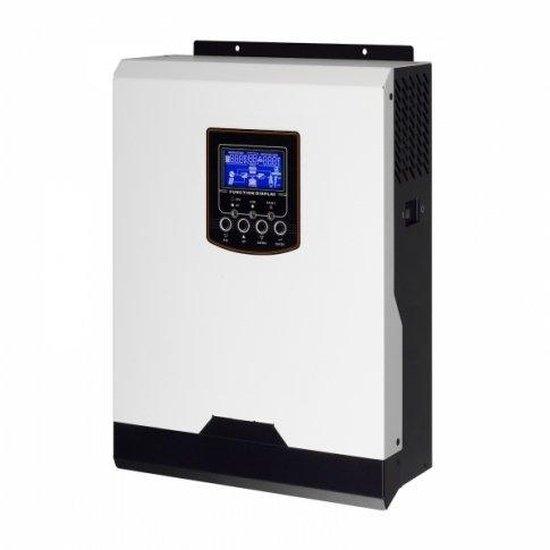

Iconica 2000W 24V hybrid pure sine wave inverter with 50A solar charge controller and 20A mains battery charger

The Iconica 2000W 24V hybrid inverter combines the functions of a 2000W 24V pure sine wave inverter, 50A solar charge controller, and a 20A smart battery charger in one portable unit. This versatile model can accept input from solar panels, mains power/generator, and a battery, either from a single source or a combination of sources. In addition to its hybrid capability, this innovative inverter features advanced communication functions and customizable settings. It is suitable for off-grid applications with limited or no access to traditional mains power.

The inverter features an Uninterrupted Power Supply (UPS), making it ideal for applications where the power supply is unreliable, intermittent, or expensive to maintain. It is suitable for stationary and mobile off-grid installations, as well as for customers looking to reduce their mains electricity usage and save on electricity bills. Additionally, it can serve as a backup system in locations with frequent power cuts.

Key functions:

1. 2000W 24V Pure sine wave inverter: Converts DC current into 230V AC mains electricity to power household appliances such as TV, laptop, lighting, fridge, etc. It can provide 2000VA of continuous power with a peak power handling capability of up to 4000VA for appliances with electric motors. This pure sine wave inverter is more efficient and compatible with a wider range of appliances than modified sine wave inverters.

2. Inbuilt 50A PWM solar charge controller: Regulates the input from solar panels to the batteries, with safety functions including protection against overcharge, overheating, reverse current, etc. The controller uses PWM technology to increase charge acceptance and prolong battery life.

3. Enhanced 20A Smart battery charger: Designed to enable safe and efficient unattended charging of a battery from a mains power source or generator, with protection against overcharge and multiple charging stages.

Additional intelligent features:

- Output source priority: Allows the user to set output source preferences for the AC load output of the inverter based on varying conditions and scenarios.

- Battery charging priority: Offers a wide selection of battery charging priority options.

- Highly customizable settings: The parameters for this inverter can be personalized to a specific degree via the user-friendly interface.

- Illuminated LCD screen: Displays vital statistics easily changeable by the user.

- Advanced communication options: The inverter is supplied with a PC connection cable and software CD for convenient viewing of important system information, such as solar/battery/AC voltage, charging current, and battery capacity. Additionally, detailed data logs are available to view and export to PDF/Excel formats.

Certainly! Here is the revised text:

This inverter has the capability to send data to an online user portal using a Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (purchased separately). By connecting through any of these methods, the user gains access to exclusive features such as email/push notification/SMS status updates for the inverter, remote system monitoring from any location, and more.

Auto restart function: When overload or overheating occurs, the inverter will disconnect the load appliances and automatically reconnect once safe conditions are detected. The inbuilt fan helps maintain an optimal operational temperature.

Intelligent cooling design: The inverter uses predictive fan logic based on performance and temperature (1 or 2 fans operating at a time, with variable speeds) to prevent over-heating of the components.

Compatibility: This hybrid inverter is suitable for 24V flooded and sealed GEL/AGM lead-acid battery banks with pre-defined charging programs. A user-defined battery type with numerous customizable settings is also available for charging other lead-acid batteries.

The inverter comes with a 1.5m cable with a 3-pin UK plug for connection to a mains power outlet. For more information, click on the Details and Specifications tab.

Inverter Specifications:

- Nominal battery voltage: 24V

- Continuous power output: 2000W / 2000VA

- Surge power: 4000VA

- Output voltage: 230V AC

- Output frequency: 50Hz/60Hz

- Output waveform: Pure sine wave

- Maximum solar input power: 1200W

- Maximum open circuit solar input voltage: 80V

- Maximum solar charging current: 50A

- Maximum mains AC charging current: 20A

- Maximum combined charging current: 50A

- Peak efficiency: 93%

- Operating temperature: -10C to 50C

- Supplied with: 1.5m AC power cable with 3-pin UK plug, PC connection cable, and PC software CD

- Size: 32 x 22.5 x 8.8 cm

- Weight: 5.5 kg

- Warranty: 1 year manufacturer warranty

Please note: Due to the low noise emitted by the cooling fan(s), this inverter may not be suitable for installation in locations which require absolute silence (e.g., bedrooms at night). A detailed user manual explaining wiring and operations is included

For installation assistance or technical support, please contact us by email or phone.
