Iconica 3000W 24V hybrid pure sine wave inverter with 4000W solar input, 80A 500V MPPT solar controller, 60A mains battery charger and inbuilt Bluetooth (No Battery Required)

Please remember the information provided below:

The Iconica 3000W 24V hybrid inverter combines the functions of a 3000W pure sine wave inverter, an 80A MPPT solar charge controller, and a 60A smart battery charger into a single unit. This model can accept input from solar panels, mains power/generator, and a battery, either from a single or combination of input sources.

In addition to its hybrid capability, this innovative inverter features advanced communication functions, including inbuilt Bluetooth and a menu full of highly customizable settings. It allows AC appliances to be powered directly from solar energy without the need for a battery, making it suitable for off-grid applications without traditional mains power.

The inverter also features an Uninterrupted Power Supply (UPS), making it an ideal option for applications where the power supply is unreliable or intermittent. It is suitable for both stationary and mobile off-grid installations, as well as for customers looking to reduce their mains electricity usage and save on electricity bills.

Key functions:

1. 3000W 24V Pure Sine Wave Inverter:

   - Converts DC current into 230V AC mains electricity to run various household appliances such as TV, laptop, fridge, microwave, and lighting.

   - Capable of generating 3000W of continuous power with a peak power handling capability of up to 6000VA.

   - Pure sine wave type, ensuring efficiency and compatibility with a wide range of appliances.

   - Can operate directly from solar panels even if the battery is not available.

2. Inbuilt 80A MPPT Solar Charge Controller:

   - Regulates input from solar panels to batteries or load with a full range of safety functions.

   - Operates at up to 98% efficiency to extract the maximum possible power from the solar array.

3. Enhanced 60A Smart Battery Charger:

   - Enables safe, efficient, and fast unattended charging of a battery from a mains power source or generator.

4. Inbuilt Bluetooth Connectivity:

   - Allows remote monitoring of the inverter via the Watchpower mobile app, providing access to important information such as solar/battery/AC voltage, charging current, and battery capacity.

Additional Intelligent Features:

- Load Power without a Battery: The inverter can power AC loads directly from the solar input without the need for a battery bank to be connected. If a battery bank is available, the inverter can power loads directly from the solar panels while charging the batteries at the same time.

Please take note of the following information:

- When 4000W of solar power flows into the inverter, 2000W can be used to power appliances while the remaining 2000W will be used for charging the battery bank.

- Simplified installation: The high solar input voltage of this inverter (up to 500V DC) allows the solar panels to be connected in series in a single chain, eliminating the need for complicated multiple string connections, blocking diodes, and expensive thick cables.

- Output source priority: This feature allows the user to set output source preferences (solar power, battery power, mains input, or a generator) for the AC load output of the inverter, with options for varying conditions and scenarios such as priority for AC output when solar power is insufficient, battery voltage is too low, or mains power is unavailable.

- Battery charging priority: Various battery charging priority options are available, including charging the battery using solar power only, a combination of solar power and mains power, or from mains power only.

- Highly customizable settings: The inverter parameters can be personalized through a user-friendly interface, allowing customization of AC input range, battery type, max charging current, specific high/low voltage disconnect points, preferred charging source upon reconnection, duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, battery equalization stage characteristics, and management of operational features such as audible alarm and backlight settings.

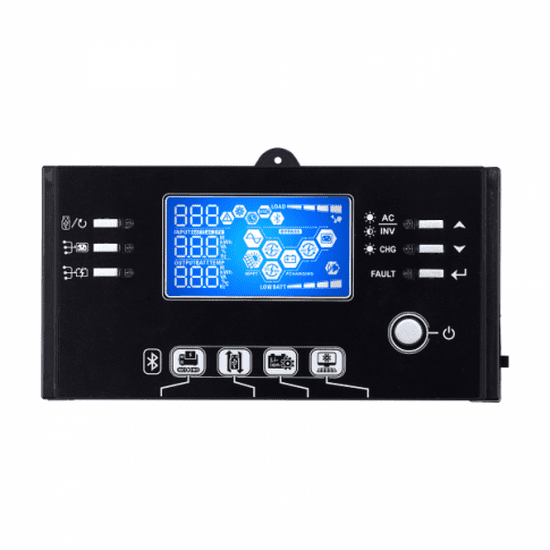

- Illuminated removable LCD screen: The screen displays vital statistics such as status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current, and is easily changeable using the up/down keys. The LCD display can be positioned up to 20m away from the inverter for remote system monitoring (requires additional basic RJ45 connection cable - not included).

- Advanced communication options: In addition to the integrated Bluetooth feature, the inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information such as solar/battery/AC voltage, charging current, and battery capacity. Detailed data logs are also available to view and export to PDF/Excel formats. This inverter also has the potential to send data to an online user portal using a Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (purchased separately).

Sure, here is the rephrased text:

Please take note of the following details:

- This inverter unlocks access to exclusive features such as email, push notification, SMS status updates, and remote system monitoring from any location by connecting through various methods.

- The inverter is equipped with a USB drive that enables the facilitation of system data upload and download.

- If connected to a generator, the inverter can automatically start the generator when the battery voltage drops below a certain level.

- The inverter has an auto-restart function that disconnects overloaded or overheated load appliances and automatically reconnects once safe conditions are detected.

- It features a Battery Management System (BMS) port for optional BMS connectivity.

- The inverter uses an intelligent cooling design with predictive fan logic to prevent overheating, and the fan is easily removable for simpler maintenance.

- This hybrid inverter is suitable for 24V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs, and it also allows for user-defined battery types with customizable settings.

- To enable solar charging or direct operation of loads from solar panels, the solar array must meet the inverter's minimum MPPT input voltage requirement of 120V (several solar panels connected in series).

- If you are unsure whether 3000W is sufficient for your appliances, please refer to the "Table of typical power consumption of domestic appliances" and click on the "Details and Specifications" tab for more information.

- Inverter specifications: Nominal battery voltage: 24V, Continuous power output: 3000W/3000VA (220-240V AC), Surge power: 6000VA, Output frequency: 50Hz, Output waveform: Pure sine wave, Maximum solar input power: 4000W, Maximum open circuit solar input voltage: 500V (open circuit), MPPT operating solar voltage: 120V - 450V, Maximum solar charging current: 80A, Maximum mains AC charging current: 60A, Maximum combined charging current: 80A, Peak efficiency: 93%, Solar/AC charger max efficiency: 98%, Operating temperature: -10°C to 50°C, Size: 44 x 30 x 11.5 cm, Weight: 9 kg, Manufacturer warranty: 1 year.

- Due to the low noise emitted by the cooling fan(s), this inverter may not be suitable for installation in locations which require absolute silence (e.g., bedrooms at night).

- This product comes with a detailed user manual that explains wiring and operations (see Documents tab). For installation assistance or technical questions, free support is available via email or phone.
