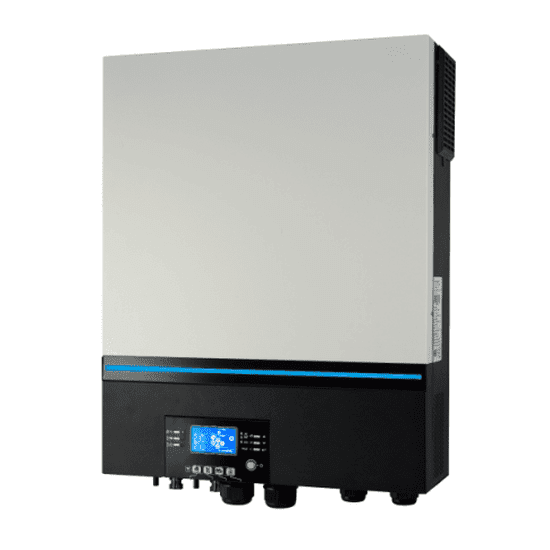

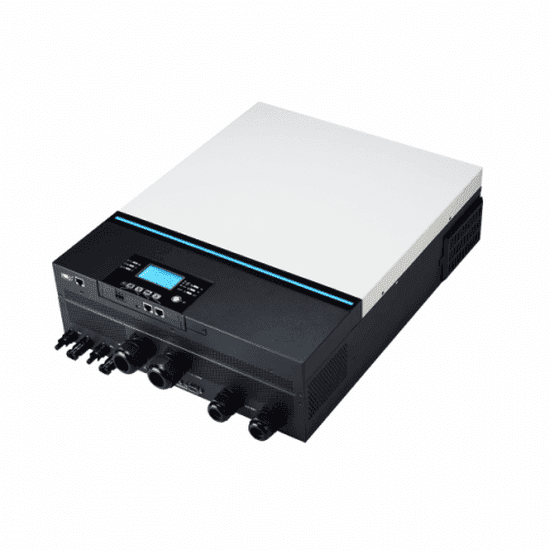

ICONICA 6000W 48V PURE SINE WAVE INVERTER WITH ZERO TRANSFER, 7000W SOLAR INPUT, 140A MPPT SOLAR CONTROLLER, 120A MAINS CHARGER, PARALLEL CAPABILITY AND WI-FI

Unlock true energy independence with the ICONICA 6000W 48V Pure Sine Wave Inverter, your ultimate power hub for any challenge. This powerful system delivers uninterrupted electricity, instantly switching to battery power with zero transfer time so your critical devices never miss a beat. With its massive 7000W solar input and intelligent charging capabilities, you'll dramatically reduce electricity bills. Gain complete peace of mind, whether you're off-grid or preparing for unexpected outages. It's designed for anyone seeking reliable, flexible, and efficient power management, from remote homes to vital IT systems.

The ICONICA 6000W is a sophisticated 48V hybrid inverter. It smartly combines the functions of a 6000W pure sine wave inverter, a 140A MPPT solar charge controller, and a 120A smart battery charger into one compact unit. This design offers unmatched flexibility, accepting input from solar panels, mains power, a generator, or a battery – singly or combined. This makes it ideal for many power needs.

Here are the core functions that make the ICONICA 6000W stand out:

• Powerful 6000W 48V Pure Sine Wave Inverter: Converts DC power into stable 230V AC electricity for your household appliances like TVs, laptops, fridges, and microwaves. It delivers a continuous 6000W, with a strong surge capacity of up to 12000VA to start demanding electric motors. Being a pure sine wave inverter, it’s highly efficient and compatible with a wider range of sensitive electronics compared to modified sine wave types.
• Efficient 140A MPPT Solar Charge Controller: This high-efficiency MPPT controller optimizes power input from your solar panels to your batteries or directly to your load. It operates at up to 98% efficiency, ensuring you get the most power possible from your solar array. It also includes comprehensive safety features against overcharge, overheating, and reverse current.
• Enhanced 120A Smart Battery Charger: Designed for safe, efficient, and rapid battery charging (up to 120A) from mains power or a generator. It offers full overcharge protection and multiple charging stages for optimal battery health.
• Instant Zero Transfer Time (UPS): Experience immediate, 0ms transfer from mains to battery power when the grid is interrupted. This crucial feature ensures continuous operation for critical IT loads like computers and servers, unlike standard inverters that have a 15-20ms delay.
• System Expansion Potential: This inverter can be connected in parallel with up to eight additional identical units, allowing for large-scale system expansion up to 54kW/54kVA. For industrial use, 3-phase operation is also possible. Please note, each additional inverter requires a separate parallel connection kit (sold separately).
• Inbuilt Wi-Fi Connectivity: Monitor your inverter remotely using the free Watchpower mobile app on Android or iOS devices. Easily view vital information like solar, battery, and AC voltage, charging current, and battery capacity.

Beyond its core capabilities, the ICONICA 6000W 48V hybrid inverter includes a wealth of intelligent features for even greater control:

• Customizable Output Source Priority: Decide which energy source (solar, battery, mains, or generator) should power your AC load. This allows for flexible energy management based on varying conditions or preferences.
• Flexible Battery Charging Priority: Choose how your battery gets charged – using solar only, a mix of solar and mains, or exclusively from mains power.
• Extensive Customizable Settings: Tailor nearly every parameter through a user-friendly interface. Adjust AC input range, battery type, max charging current, specific high/low voltage disconnect points, charging stage durations, auto-restart options, power-saving mode, overload bypass, battery equalization, and more. You can also manage operational features like audible alarms and backlight settings.
• Illuminated Removable LCD Screen: The display shows essential real-time statistics which are easily changeable. This information includes status and mode, input/output voltage, frequency, battery voltage, load power, and charge/discharge current. It’s removable and can be placed up to 20m away for convenient remote monitoring (requires an additional basic RJ45 connection cable, not included).
• Advanced Communication Options: Besides the integrated Wi-Fi, this inverter comes with a PC connection cable and PC software CD for convenient viewing of important system information and detailed data logs. There's also potential to send data to an online user portal using a separate Wi-Fi connection kit (purchased separately), unlocking exclusive features like email status updates and remote system monitoring from anywhere.
• USB On-the-Go Function: A supplied USB drive allows for easy upload and download of system data.
• Generator Auto-Start Function: If connected to a generator via dry contacts, the Iconica inverter can send a signal to automatically start the generator as soon as the battery voltage drops below a certain level.
• Auto Restart Function: In case of overload or overheating, the inverter safely disconnects loads and automatically reconnects once conditions return to normal.

Compatibility:
This hybrid inverter is suitable for 48V flooded and sealed GEL/AGM lead-acid and lithium batteries with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other lead acid batteries.

Important Note: For solar charging or direct load operation from solar panels, your solar array must meet the inverter's minimum MPPT input voltage requirement of 120V (typically achieved with several solar panels connected in series).

Specifications:

• Nominal battery voltage: 48V
• Continuous power output: 6000W/6000VA (220-240V AC)
• Surge power: 12000VA
• Output frequency: 50Hz - 60Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 7000W
• Maximum open circuit solar input voltage: 500V (open circuit)
• MPPT operating solar voltage: 120 - 430 V
• Maximum solar charging current: 27A
• Maximum mains AC charging current: 120A
• Maximum combined charging current: 120A
• Peak efficiency: 92%
• Operating temperature: -10°C to 50°C
• Supplied with USB drive, PC connection cable, and PC software CD
• Size: 140 x 295 x 468 mm
• Weight: 12 kg

This product includes a 1-year manufacturer warranty.

Please Note: Due to the quiet operation of the cooling fan(s), this inverter might not be ideal for installations requiring absolute silence, such as bedrooms at night. A detailed user manual for wiring and operations is included. You can also download the user manual for the IC2-ZT6000-48 hybrid power inverter, its datasheet, and the 'WatchPower' PC software user manual.

The ICONICA 6000W 48V Inverter is more than just a power solution; it's an investment in reliable, flexible, and sustainable energy. Its zero transfer time ensures uninterrupted power for sensitive equipment, while the high solar input and smart charging maximize your energy independence. Perfect for off-grid living, crucial IT setups, or simply reducing your electricity bills, this inverter provides the advanced functionality and peace of mind you deserve. Choose ICONICA for a powerful, smart, and dependable energy future.
