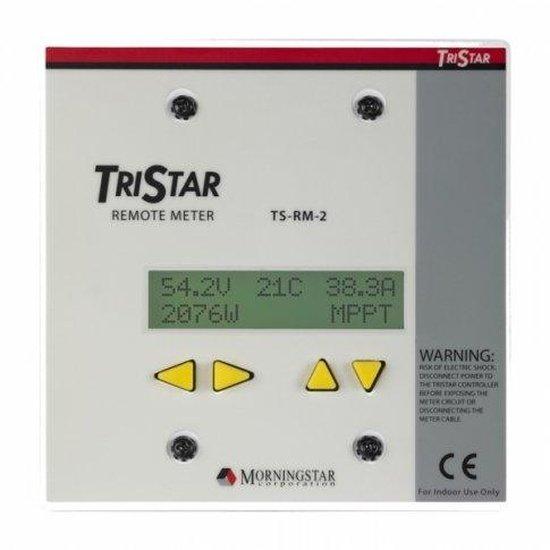

xMorningstar TriStar LCD Remote Meter (TS-RM-2)
As an official distribution partner of Morningstar products across the globe, we are proud to offer solar charge controllers and accessories from this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range solar charge controllers to extend battery capacity and life, maximize energy production, and consistently achieve high performance standards.
This high-quality advanced digital remote meter is suitable for all Morningstar TriStar series of solar charge controllers (TS-series, TS-MPPT series, and TS-MPPT-60-600V series - see Specifications tab for more details). It is perfect for caravans, motorhomes, boats, or other systems that have inaccessible batteries and require remote monitoring and viewing of their solar power system, as the remote meter comes with 30m of cable that simply plugs into the RJ-11 port on your TriStar controller. This remote meter can be purchased with any TriStar controller, or added as an upgrade at any time.
Other key features include:
- Extremely high reliability: Long 5-year warranty
- Easy to install and use: Only four directional pushbuttons for smooth navigation through the display screens
- Backlit LCD display: Can show individual controller data or aggregate system data with up to 15 TriStar controllers (controllers must be linked through a Morningstar MeterHub, sold separately)
- Multi-language option: Information shown in English, French, German, Portuguese, or Spanish
The remote meter can display various charging parameters such as battery voltages, charge priority, state of charge of batteries, etc. The large numerical display and buttons allow easy navigation through the meter menus and a quick point of reference for your solar power system.
Click on the Details and Specifications tab for more information about this product.
Specifications:
-
Suitable for all TriStar controllers:
- TS-series (TS-45, TS-60)
- TS-MPPT series (TS-MPPT-30, TS-MPPT-45, TS-MPPT-60)
- TS-MPPT-60-600V series (TS-MPPT-60-600V-48, TS-MPPT-60-600V-48-DB-TR)
- Self-consumption: < 0.5W (42.5 mA with backlight on)
- Operating temperature: -40°C to +60°C
- Connection point: RJ-11 (6pin) with 30m cable
- Mounting: Wall mounting plate with mounting holes included
- Size: 116 x 116 mm
- Weight: 180 g (without cable)
This product is covered by a 5-year manufacturer warranty. This product is supplied with a detailed instruction manual (see the 'Documents' tab) which explains connections and operations. If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone.
