Description

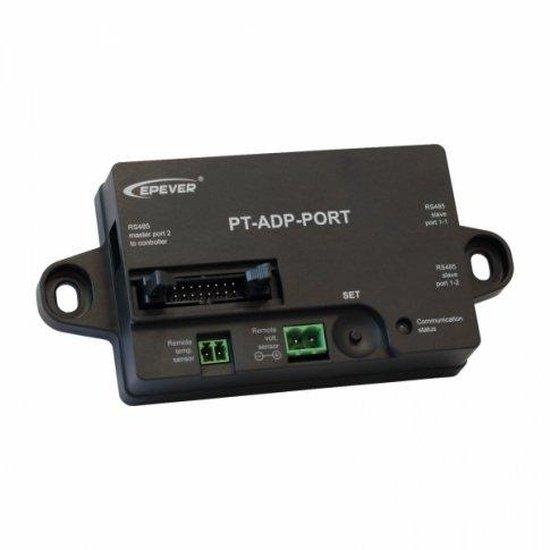

xThis PT Adapter parallel connection kit allows the connection of up to 6 of our TR****AN or PTR****AN range MPPT solar charge controllers (50-100A models only) into a parallel system attached to the same battery bank. By synchronising the charging voltages and evenly distributing the charging current, the PT adapter ensures the highest possible charging efficiency from a system of multiple, identical solar controllers with independent solar arrays. Compatible with: High efficiency 50A MPPT charge controller High efficiency 60A MPPT charge controller High efficiency 80A MPPT charge controller High efficiency 100A MPPT charge controller An RJ45 to USB cable ?ÿcan be used to connect the adapter directly to your PC / laptop, where parameters and settings for all controllers in the system can be monitored and adjusted via a free computer program - Solar Station Monitor ?ÿ (Windows-based PCs and laptops only). If using the RJ45 to USB cable, the user also has the option to?ÿcreate a user-defined battery type with charging parameters specific to?ÿtheir battery (if the pre-existing options are unsuitable). Using the voltage measurement terminals on the adapter to accurately measure the battery voltage allows the solar controllers to compensate for any voltage drop across the battery cables. There is also a socket for connecting a remote temperature sensor , which can be attached directly to the battery to measure the battery temperature more precisely and optimise the charging process. Click on the Details and Specifications tab for more information about this product. Adapter Specifications: Compatible with TR/ PTR****AN series controllers (50-100A) Cable length: 1.9m Connection: RJ45 Self-consumption: 0.25W Port baud rate: 9600bps, 115200bps?ÿ(default 115200bps) Enclosure: IP30 Dimensions: 151.5 x 69.9 x 38mm Weight: 39g Mounting holes for ease of installation: 6.5mm diameter, 133.4mm separation This product comes with a detailed user manual which explains wiring and operations. Advanced users will benefit from a section in the manual explaining the PC monitoring software. If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone?ÿ The following documents are available to download: User Manual for Photonic Universe Parallel Adapter for 50-100A MPPT solar charge controllers (PT-ADP-PORT) Datasheet for Photonic Universe Parallel Adapter for 50-100A MPPT solar charge controllers (PT-ADP-PORT)
