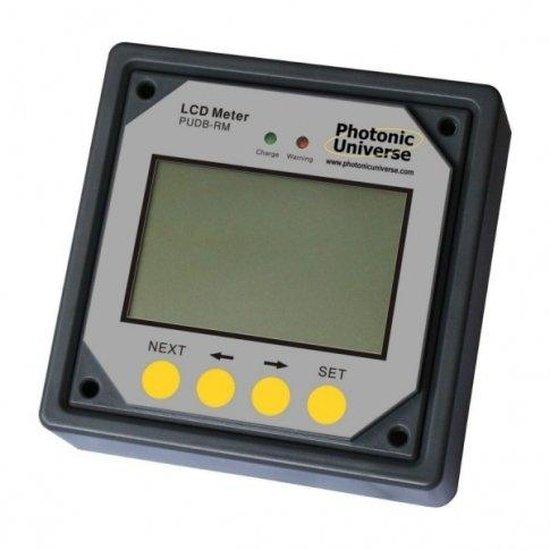

Remote meter / display for 10A and 20A dual battery solar charge controllers

Unlock complete visibility and control over your dual battery solar system with our Remote Meter / Display. Designed specifically for Photonic Universe 10A and 20A dual battery charge controllers, this essential tool delivers crucial real-time insights, empowering you to monitor and manage your power efficiently from a distance. Gain peace of mind knowing your batteries are always performing optimally, extending their lifespan and ensuring reliable energy whenever you need it.

This high-quality remote display is perfectly suited for 12V/24V solar systems that utilize two batteries, offering comprehensive remote monitoring capabilities. It seamlessly integrates with your existing Photonic Universe 10A or 20A dual battery solar charge controller (DB1024 and DB2024 series). Installation is incredibly straightforward: simply connect the included 10-meter RJ45 cable to your controller's designated socket for immediate access to critical charging data.

The display parameters can conveniently rotate automatically every 3 seconds, or for a more focused view, you can customize it to show only the information most important to you. Navigating between data sets is easy and intuitive, thanks to the four dedicated buttons on the front panel.

Beyond standard charge metrics, this versatile unit also supports robust temperature monitoring. You have the flexibility to view temperatures measured either by your charge controller's inbuilt temperature sensor or, for enhanced accuracy, by an optional external temperature sensor. This feature provides a more complete understanding of your system's environmental conditions, helping you ensure optimal operation. Everything needed for a quick and secure setup, including a detailed user manual and a wall mounting board with pre-drilled holes, is provided to get you up and running without delay.

• Compatible with Photonic Universe 10A and 20A dual battery solar charge controllers (DB1024 and DB2024 series)
• Ideal for 12V/24V solar systems with two batteries
• Provides comprehensive real-time charging parameters, including:

  • Battery voltage for both batteries
  • Solar panel voltage and current (with maximum recorded)
  • Battery state of charge and accumulated capacity
  • Minimum and maximum voltages recorded for each battery
  • Detailed split of charge ratio for each battery
  • Charging frequency (frequency of charging pulses)
• Additional data display: Temperature (from inbuilt controller sensor or optional external sensor) and Time
• Easy Plug & Play Installation: Connects effortlessly via the included 10-meter RJ45 cable to your controller's RJ45 socket
• Flexible Display Modes: Automatic 3-second data rotation or user-selected specific data display
• Intuitive navigation with four front panel buttons
• Rated voltage: 12V
• Low self-consumption: 17-23mA
• Wide operating temperature range: -40°C to +60°C
• LCD operating temperature: -10°C to +40°C
• Humidity tolerance: 0-100%
• Compact and lightweight design: 11 x 11 x 4 cm; 150 g (without cable)
• Includes a wall mounting board with pre-drilled holes for easy installation
• Comes with a detailed user manual for straightforward setup and operation

Investing in this remote meter means gaining unparalleled oversight of your solar power setup. Enjoy the peace of mind that comes from knowing the exact status of your solar panels and batteries at all times. This essential accessory helps you optimize performance, extend battery life, and ensure your off-grid power is always dependable. Take control of your energy with clear, accessible data, making informed decisions for your dual battery system and maximizing your solar investment.
