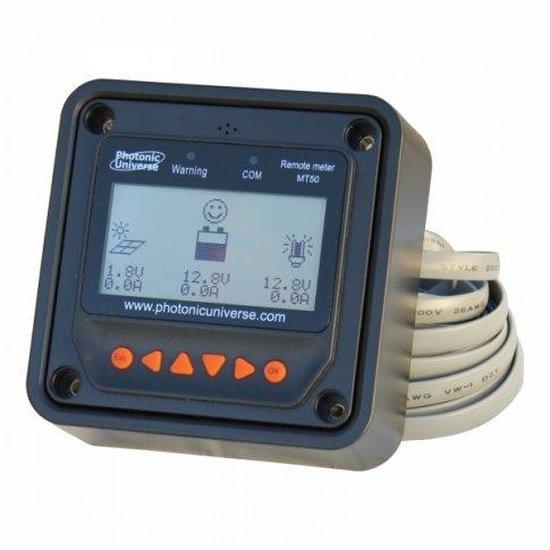

Remote meter / display for MPPT and PWM solar charge controllers TR/PTR/VS/PU Series

Unlock the full potential of your solar power system with our advanced Remote Meter/Display. Designed for seamless integration with your MPPT and PWM solar charge controllers (TR/PTR/VS/PU/LS Series), this essential device puts you in complete control. It lets you monitor, manage, and optimize your battery charging process from a convenient location. Say goodbye to guesswork and hello to precision, ensuring your solar setup runs efficiently and reliably, giving you true peace of mind.

Here’s what this powerful Remote Meter/Display brings to your solar setup:

• Comprehensive Monitoring: Instantly view vital charging parameters. This includes voltage, current (for both solar panel and load), and battery state of charge.
• Data Logging: Records accumulated charge and discharge energy. It also tracks minimum and maximum voltage for better long-term insights.
• Exclusive Settings Unlocked: Gain access to advanced settings previously unavailable. This gives you far greater control over your solar system’s performance.

With these exclusive settings, you can truly customize your solar charging:

• Amend the battery type and capacity to match your specific setup.
• Select charging volts for different charging stages for optimal battery health.
• Specify the precise duration of each charging stage.
• Create a user-defined battery type with custom charging parameters if standard options don't fit.
• Personalise the 'load' settings – for example, set timers for lighting, fans, or pumps.

Additional smart features enhance your experience:

• Self-Diagnostic Capability: The meter can identify and highlight any system errors using advanced fault-targeting technology, helping you troubleshoot quickly.
• Flexible Mounting Options: Its clever design features a removable external frame. This allows for either flush-mounted or surface-mounted installation, based on your preference.

Compatibility and Connection:

This Remote Meter/Display is designed to work perfectly with many of our high-efficiency MPPT and PWM solar charge controllers, including:

• TR and PTR series (models TRxxxxBN, TRxxxxAN, and PTRxxxxAN)
• VS Series (models VSxxxxBN)
• PU series (models PUxxxxB)
• PU series waterproof (models PUxxxxBW – requires compatibility cable)
• LS Series

Connecting your new meter is straightforward. If you have a compatible solar controller with an RJ45 port, simply plug the included 5-meter cable into the controller's RJ45 socket. For controllers equipped with an RS485 port, an additional RS485 to RJ45 cable will be required for connection.

Please Note: This Remote Meter/Display is not suitable for dual battery solar charge controllers (DB or EPIPCOM series), or for eTracer 45A/60A solar charge controllers.

Technical Specifications:

• Suitable for: MPPT and PWM solar charge controllers (TR/PTR/VS/PU/LS Series)
• Self-consumption: 15-65mA (varies with backlight settings)
• Operating temperature: -20°C to +70°C
• Communication cable: RJ45 (8-pin), 5 meters included
• Wall mounting frame with pre-drilled holes included
• Size (without frame): 10 x 10 x 3 cm
• Size (with frame): 12 x 12 x 5 cm
• Weight: 230 g
• Warranty: Covered by a 1-year manufacturer warranty.

Installation & Support:

Your unit comes with a detailed user manual. This guide clearly explains connection steps and operation. For flush-mounting, please be aware that a recess will be required in your mounting wall or surface.

Should you need any help with installation or have technical questions, we provide FREE support. Simply contact us by email or phone.

Take charge of your solar energy like never before. This Remote Meter/Display is more than just an accessory; it's your command center for ultimate system control and efficiency. Get precise insights, unlock custom settings, and troubleshoot with ease, all from one convenient location. Invest in smarter solar management today and maximize your power potential!
