Victron Energy MultiPlus Inverter/Charger - 12V 500VA/20A

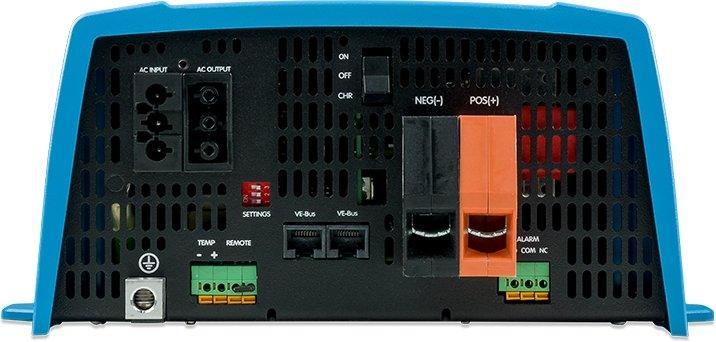

Victron Energy MultiPlus Inverter/Charger - 12V 500VA/20A The 12/500/20 MultiPlus from Victron Energy is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact unit. This design not only saves space, but simplifies your installation by requiring only a single set of cables to connect to your battery. The pure sinewave inverter is designed around Victron's full bridge plus toroidal transformer topology, which has proven its reliability over many years and is used across their Phoenix range of inverters. It's powerful enough to supply most commonly used mains-powered appliances and provides high peak power surge capacity, stable voltage, frequency and high quality sine-wave output. The charger is multi-stage and fully automatic and the?ÿmicroprocessor-driven adaptive battery management system can be adjusted for various types of batteries (wet, AGM, GEL, Li-ion). The adaptive technology automatically varies the charging process in accordance with the way the batteries are discharged, ensuring that your batteries are always kept in optimal condition. There are 2 outputs available for charging; one full power output and a second, limited current and voltage output intended for trickle charging a starter battery. The built-in AC transfer switch performs the function of an Uninterruptable Power Supply (UPS). In the event of a grid failure, or shore or generator power being disconnected, the inverter?ÿis automatically activated and takes over AC supply to the connected loads.?ÿThis happens in less then 20 milliseconds and ensures that sensitive connected equipment continues to run without disruption. This feature can be deactivated if not required. Inverter Input voltage range: ?ÿ 9.5 - 17.0 VDC Output voltage: ?ÿ 230VAC +/- 2% (can be adjusted to 240VAC) Output frequency: ?ÿ 50Hz?ÿ+/- 0.1%?ÿ(can be adjusted to 60Hz) Continuous output power at 25?§C: ?ÿ 500VA Continuous output power at 25?§C/40?§C/65?§C: ?ÿ 430/400/300W Peak power: ?ÿ 900W Max. efficiency: ?ÿ 90% No-load power consumption: ?ÿ 6W Zero load power in search mode: ?ÿ 2W Charger Input voltage range: ?ÿ187 - 265 VAC Input frequency: ?ÿ45-65Hz Charge voltage (absorption): ?ÿ 14.4 VDC Charge voltage (float): ?ÿ13.8 VDC Charge voltage (storage mode): ?ÿ13.2 VDC Charge current (primary output): ?ÿ 20A Charge current (secondary output): ?ÿ1A General Transfer switch current rating: ?ÿ16A (@ 230 VAC) Internal DC fuse: ?ÿ 125A Operating temperature:?ÿ -40?§C to +65?§C (fan assisted cooling) DC (battery) cable connection: ?ÿScrew clamp terminals Max. DC cable size: ?ÿ 16mm?ý 230V AC cable connection:?ÿ G-ST18i connectors (included) Ingress Protection rating: ?ÿIP21 Weight: ?ÿ4.5kg Overall dimensions: ?ÿ311 (L) x 182 (W) x 100 (H) mm Part Number: ?ÿ ?ÿ PMP121500000 Victron Multiplus?ÿ Inverter/Charger 12V 500VA/20A Datasheet Victron Multiplus?ÿ Inverter/Charger 12V 500VA/20A?ÿUser Manual Please note:?ÿ Cables are not supplied. For the DC (battery) connection, Victron recommend ?ÿ 16mm?ý cable?ÿprotected with a ?ÿ 125A midi fuse ?ÿ for run lengths of up to 5m. The 230V output is designed to be hard-wired to sockets or other parts of an AC system.?ÿ If in doubt with regard to specifying AC cable size and circuit protection, please consult a qualified electrician. Suitable for use in caravans, motorhomes, campervans, boats and commercial vehicles. Features Pure sine wave output (inverter) High start-up power?ÿ(inverter) Search Mode for reduced 'no-load' power consumption?ÿ(inverter) Transfer Switch UPS function (inverter) Adaptive 4-stage charging (charger) Storage mode to prolong battery life (charger) Twin charger outputs - full current and trickle charge (charger) Battery temperature sensor (charger) LED fault diagnosis Remote On/Off switching Programmable alarm/signalling relay Protected against output short circuit Protected against?ÿbattery voltage low/high Protected against?ÿpower overload Protected against?ÿover-temperature Protected against 230V AC detected on inverter output (e.g. from another AC source) Protected against?ÿinput voltage ripple too high 5-year manufacturer's warranty
