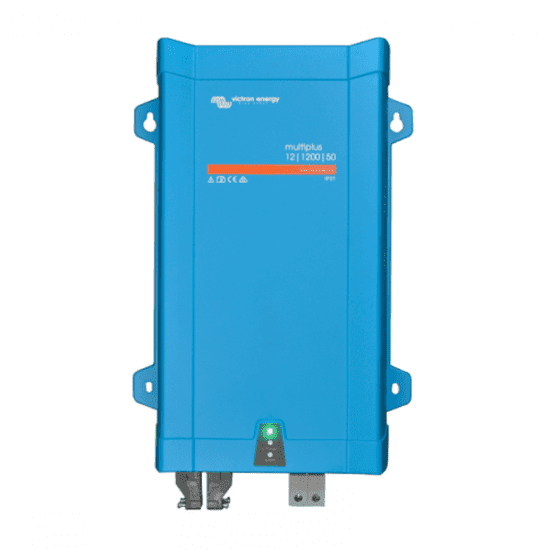

Victron Multiplus 1200VA 12V Inverter With 50A Charger 12/1200/50-16 230V

Discover the Victron MultiPlus 1200VA 12V Inverter/Charger – your ultimate all-in-one power solution for reliable energy wherever you are. This smart device intelligently combines a powerful inverter, a sophisticated battery charger, and a super-fast transfer switch into one compact unit. Say goodbye to complex wiring and hello to seamless power, whether you're off-grid in your RV, sailing the seas, or simply need a dependable backup for your home. Enjoy uninterrupted electricity, efficient battery charging, and the peace of mind that comes with a truly integrated power system.

Here are the core capabilities of your Victron MultiPlus:

• 1200VA (1000W) Pure Sine Wave Inverter: Converts your battery's DC power into clean 230V AC electricity, just like your home outlets. Perfect for running TVs, laptops, lights, and more, with a strong 2400W peak power for starting motor-driven appliances.
• Adaptive 50A 4-Stage Smart Battery Charger: Safely and efficiently charges your 12V battery, adapting its process to your battery's specific needs and type.
• High-Speed 16A AC Transfer Switch (UPS Function): Provides uninterruptible power. If grid, shore, or generator power drops, the MultiPlus switches to battery power in less than 20 milliseconds. Your sensitive electronics won't even notice, preventing data loss.
• Compact All-in-One Design: Saves space and simplifies installation, requiring fewer cables than separate units.

Beyond its main functions, the MultiPlus offers several smart features to enhance your power experience:

• PowerControl: Imagine having limited power from a generator or shore hookup. This feature lets you set a maximum input current for the MultiPlus. It then intelligently prioritizes power to your active appliances, using any “leftover” current to charge your batteries. This prevents overloading your supply and tripping circuit breakers. (Requires a separate Multi Control Panel, not included).
• PowerAssist: Need more power than your AC source can provide for a short burst? PowerAssist steps in! The MultiPlus can temporarily draw extra power from your battery to supplement the AC input, meeting high demands. Once demand drops, the system uses spare AC power from the AC source to recharge your battery. This means you might use a smaller generator or get more from a limited shore power connection.
• Programmable Relay: This versatile relay can be set up for various uses, like sending a start/stop signal to your generator. By default, it acts as an alarm relay, indicating issues such as overheating, high input ripple, or low battery voltage.
• Parallel & 3-Phase Operation: For even more power, you can connect up to six identical MultiPlus units together. This allows for higher output or even 3-phase power setups. (Requires a standard RJ45 UTP cable, not included).
• Built-in Safety Protections: Your MultiPlus is designed with comprehensive safeguards against potential hazards. These include protection from output short circuits, overloads, battery overvoltage & undervoltage, overheating, accidental 230V AC on the inverter output (e.g., from another AC source), and excessive input voltage ripple.
• WeakAC Mode: In environments with heavily distorted input voltage, this mode allows the charger to still operate effectively, ensuring your batteries get charged even from less-than-perfect power sources.
• BatterySafe Mode: Prevents damage to your battery during fast charging. It automatically limits the rate of voltage increase once the gassing voltage is reached, safeguarding your battery’s health.
• Storage Mode: For periods when your battery isn’t being discharged (e.g., if your system is stored for over 24 hours), this mode reduces the float voltage to minimize gassing and positive plate corrosion. Once a week, the voltage is raised to “equalize” the battery, preventing stratification and sulfation – common causes of early battery failure.
• Bulk Protection: When activated, this setting limits the bulk charging time to 10 hours. A longer charging time could indicate a system error (e.g., a battery cell short circuit), which this feature helps to identify.
• Temperature Compensation: The included temperature sensor adjusts the charging voltage based on battery temperature. This is crucial for maintenance-free batteries, preventing overcharging and drying out.

• Inverter Input Voltage Range: 9.5 - 17 V DC
• Inverter Output Voltage & Frequency: 230 VAC ± 2% @ 50Hz ± 0.1% (adjustable to 240 VAC @ 60Hz)
• Continuous Output Power (at 25°C): 1200 VA (i.e., 1000W)
• Peak Power: 2400W
• Maximum Inverter Efficiency: 93%
• Zero-load Power: 10W
• Charger AC Input Voltage Range: 187 - 265 VAC
• Charge Voltage ‘Absorption’: 14.4V
• Charge Voltage ‘Float’: 13.8V
• Storage Mode Voltage: 13.2V
• Charge Current House Battery: 50A
• Charge Current Starter Battery: 1A
• Transfer Switch: 16A
• Internal DC Fuse: 200A
• Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
• Humidity (non-condensing): Max 95%
• Protection Category: IP 21
• Battery Connection: 35mm²
• Weight: 8.2kg
• Dimensions (H x W x D): 406 x 250 x 100 mm

Remote Monitoring and Control:
Gain full control from anywhere! By connecting your MultiPlus to a Victron GX device (like the Cerbo GX), you can monitor and manage your entire power system. Use the free VRM app or portal website on your phone, tablet, or computer. Access your system locally via LAN/Wi-Fi or remotely via the internet – giving you complete peace of mind.

Important Notes:
This inverter/charger does not come with cables. Detailed recommendations for cable length and thickness are available in the user manual, which you can download. This product is also backed by a 5-year manufacturer warranty, ensuring long-term reliability.

Choosing the Victron MultiPlus 1200VA Inverter/Charger means investing in reliable, smart, and versatile power. You get:

• Uninterrupted Power: Keep your devices running smoothly, even during outages.
• Efficient Battery Care: Extend your battery life with advanced charging technology.
• Space-Saving Design: Enjoy a cleaner, simpler installation.
• Advanced Control: Customize and monitor your system from anywhere.
• Built-in Safety: Operate with confidence, knowing your system is protected.

Whether you're setting up an off-grid cabin, equipping a mobile workshop, or looking for a robust home backup, the MultiPlus delivers exceptional performance and peace of mind. It’s the smart choice for those who demand dependable, integrated power solutions.
