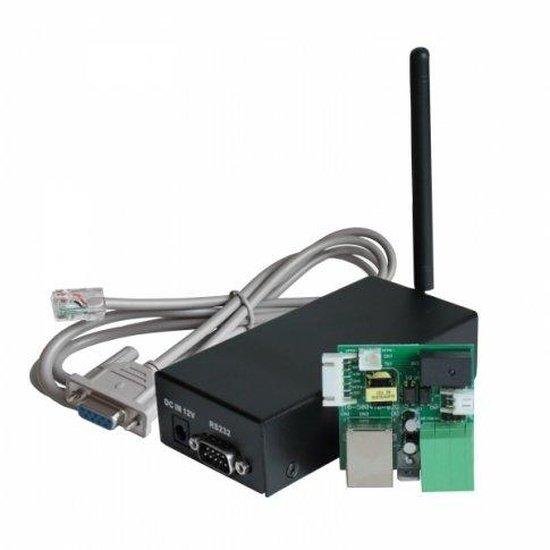

Wi-Fi Remote monitoring kit for Iconica hybrid inverters (with Email communication)

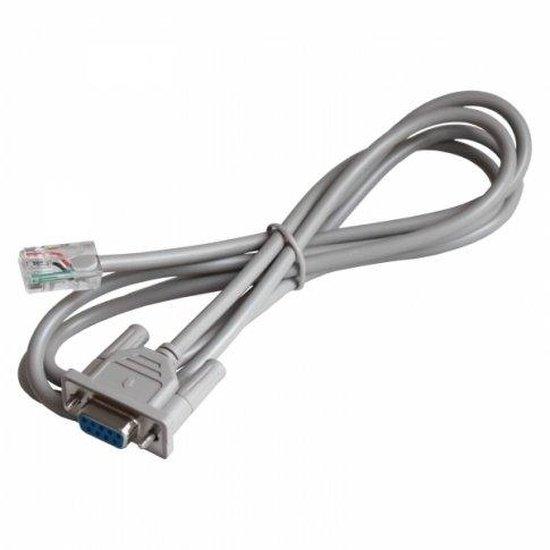

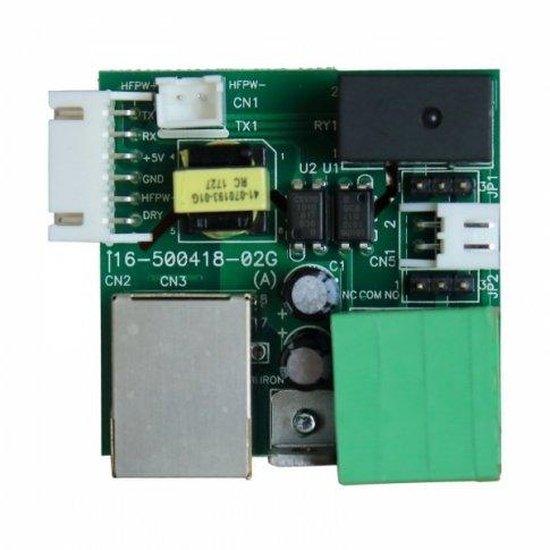

This intelligent?ÿ Wi-Fi remote monitoring kit uses Wi-Fi connectivity to enable advanced remote?ÿmonitoring?ÿof an ?ÿIconica hybrid inverter from any location in the world. The Wi-Fi card collects data from the Iconica inverter and transmits it to the user using?ÿthe preferred method from the following two?ÿoptions: 1) Short-distance mode: By creating a Wi-Fi network which the user can access from a nearby location (within approx 10-50m radius depending on obstructions)?ÿon a mobile device 2)?ÿ Long-distance mode : By connecting to?ÿan existing broadband?ÿnetwork , where inverter data is transmitted to?ÿan online server,?ÿenabling the user to view?ÿdata from any location via an internet browser. In case of?ÿlong distance monitoring the?ÿdata?ÿis?ÿaccessed?ÿby logging into?ÿan online portal , DataCenter , which features an extensive range of options for monitoring system data . This Wi-Fi kit also has the ability to send email notifications to one or multiple email addresses, alerting?ÿthe user of alarm events or system reminders.?ÿ Kit includes: Wi-Fi card and unit (with antenna) DB9 to RJ45 cable for connection to the Iconica inverter Additionally required: Broadband network (only if long-distance remote monitoring is preferred) 12V power supply (mains to 12V DC power adapter) with some inverters This kit is compatible with Iconica?ÿhybrid inverters. Please note that Iconica 4KW and 5KW KMS series?ÿ inverters can?ÿpower this Wi-Fi remote monitoring kit directly using the RJ45 cable included with this kit. Other Iconica?ÿinverters cannot power the kit directly, and?ÿa?ÿ mains to 12V DC power adapter with a 5.5/2.5mm DC power jack connector must be sourced additionally in order to enable operation of this?ÿWi-Fi kit.?ÿ?ÿ Online data portal: This Wi-Fi kit intelligently communicates with an Iconica inverter to transmit data to the online portal, DataCenter . After creating a username and password, the user will be able to login from?ÿa mobile phone / tablet /?ÿPC?ÿto remotely view system?ÿinformation. Options for remote monitoring include: -?ÿLive in-depth data monitoring: View up-to-date system information (refreshed every 5 minutes) including: PV input voltage, battery voltage, charging current, grid voltage, grid output voltage, AC output power, output load percentage, total AC output (in VA or as a percentage value), nominal rated input voltage /?ÿoutput voltage and frequency / battery voltage - Detailed datalogs: Historical system data and alarm history is recorded and stored indefinitely. It is available to view for any given date range over the inverter's lifespan. The specific time and dates of each recorded value / alarm event?ÿare also displayed. -?ÿ3D infographics and diagrams: A system status diagram?ÿillustrates?ÿall?ÿconnected system components (solar panel, load, battery. For certain Iconica models, bar charts display total generated power?ÿ(hourly, daily, monthly or annual data).?ÿ - Regional monitoring :?ÿOption to group together and?ÿmonitor multiple Iconica inverters?ÿbased on location, allowing the user to view?ÿcombined data for?ÿinverters?ÿin a particular region, such as: PV input power, grid voltage and battery capacity percentage. (One Wi-Fi kit required per inverter). - Multiple user access:?ÿ Option for the administrator to create and manage?ÿseveral accounts for other authorised users to?ÿaccess the online portal and view /program settings for the assigned?ÿinverter. Additional users can also?ÿreceive email status updates. Email notifications: The user can choose to be notified via email when any system faults or warnings are detected.?ÿ Compatibility: This?ÿWi-Fi remote monitoring kit is designed for use with Iconica hybrid inverters . It is not suitable for use with any other inverter. Click on the Details and Specifications tab for more information. Specifications: Compatible with Iconica hybrid inverters?ÿ Rated voltage : 12V (additional mains power adapter required with some inverters) DB9 to RJ45 communication cable: 1.5m Wi-Fi box dimensions (excluding mounting brackets):?ÿ120 x?ÿ61 x 34 mm 2 x Mounting brackets dimensions: 31 x 12 mm (each with 8mm diameter hole) Antenna length: 115mm Wi-Fi?ÿbox weight (including the card and antenna): 335g This?ÿproduct is covered by a?ÿ 1 year warranty .?ÿ This product comes with a detailed user manual which explains wiring and operations (see Documents tab). If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone. The following documents are?ÿavailable to download: User manual for Wi-Fi Remote monitoring kit for Iconica hybrid inverters (IC-WIFI)
